Our
Heavy Duty Wire Mesh Screens are specially manufactured for extremely
rugged operating conditions in scalping, sizing or processing
heavy abrasive materials such as ores, crushed stones, sand, gravel,
metallic and non metallic minerals, coal slag etc.
We manufacture
the below screens in Spring Steel, Mild Steel, GI Wires and
Stainless Steel to suite particular applications
Screens
are woven accurately to any mesh size and of any diameter wire
or rod to meet your specific requirement. |
| END

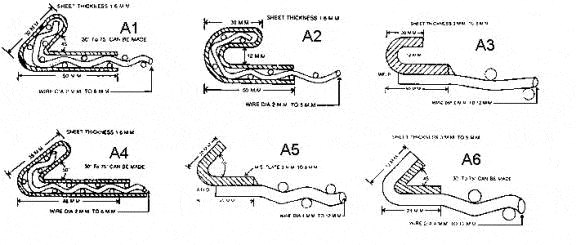

HOOK STRIP AND EDGE STYLE
|
| |

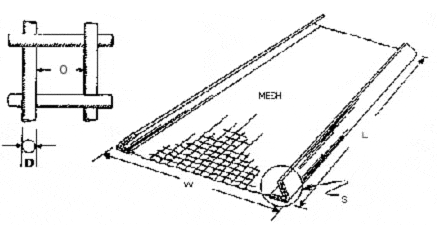

| HOW
TO SPECIFY WIRE MESH VIBRATING SCREENS
|
|
| |
INFORMATION
REQUIRED ON SCREEN MESH ORDERS
W. Width - Overall (O.A.) outside to outside hooks
L. Length of screen
O. Opening Space between wire.
D. Wire size and type of material
S. Type of edge preparation
ADDITIONAL
INFORMATION NEEDED
1. Total Number of pieces
2. For non standard hook, give amount, angle and position on
screen
3. If rectangular or long slot, give dimension to which long
slot is parallel
|
|
