We
are specialises in Microfiltration and fluid handling equipments
has strengthened it's leadership position in the industry by
being responsive to our customers. Highly motivated team of
technocrats who with their vast knowledge and rich experience
of several years of dedication have contributed positively,
adding a new dimension to the Microfiltration industry. Our
goal is to provide products and services that furnish value
for our customers by meeting all of their requirements and expectations.
THE
ADVANTAGE :
- The
Cartridge assembly can be easily lifted with the help of
lifting handles provided on the upper ring.
- Standard
filter plates are available in two depths, Deep plate for
large percentage of cake holding capacity and shallow plate
for small percentage of cake holding capacity.
- The
cake in the plate is stable and uniform which provides filtrate
of highest clarity and brilliance.
- The
horizontal filter plate and even thickness of cake prevents
the cake dropping as well as cracking, thus assuring better
filtrate quality.
- The
filtration area can be increased or decreased according
to requirement.
|
| THE
APPLICATION :
-
Filtration of sugar syrup based liquid.
- Filtration
of thin liquid.
- Kieselguhr
Filtration.
- Retention
of solids / Carbon /Catalyst.
THE
UNIT :

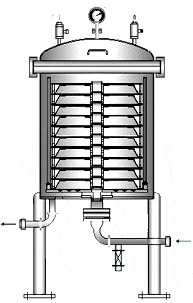

- Liquitech
is enclosed construction, preventing evaporation, oxidation,
leakage and fumes escaping from product.
- Liquitech
is designed in such a way to make available maximum filtration
area possible in minimum space.
- Liquitech
is compact and portable.
- Liquitech
is available in four different sizes Ø8" / Ø14"
/ Ø18" / Ø33".
- Liquitech
is provided with accessories like pressure gauge, Air Vent
Valve, Drain Valve and safety valve.
|
| |
|
|
|
|
|
| Sr.
No. |
SIZE |
TYPE |
FILTRATION
AREA |
CAKE
HOLDING CAPACITY |
FLOW RATE |
| |
|
DIA.
Of PLATE |
HEIGHT
OF PLATE |
NO.
OF PLATE |
EACH
PLATE |
TOTAL |
EACH |
PLATE |
|
| |
|
mm |
mm |
|
m2 |
m2 |
lts. |
lts. |
lts. / hr. |
| 1 |
8"Ø |
200 |
25 |
6 |
0.028 |
0.19 |
0.7 |
4.24 |
400 |
| 2 |
8"Ø |
200 |
25 |
8 |
0.028 |
0.25 |
0.7 |
5.66 |
500 |
| 3 |
14"Ø |
360 |
25 |
8 |
0.091 |
0.72 |
1.45 |
11.6 |
1500 |
| 4 |
14"Ø |
360 |
25 |
10 |
0.091 |
0.91 |
1.45 |
14.5 |
1900 |
| 5 |
14"Ø |
360 |
25 |
12 |
0.091 |
1.09 |
1.45 |
17.4 |
2100 |
| 6 |
18"Ø |
460 |
25 |
12 |
0.152 |
1.82 |
2.53 |
30 |
3500 |
| 7 |
18"Ø |
460 |
25 |
15 |
0.152 |
2.28 |
2.53 |
38 |
4200 |
| 8 |
18"Ø |
460 |
25 |
23 |
0.152 |
3.50 |
2.53 |
58 |
6600 |
| 9 |
18"Ø |
460 |
50 |
8 |
0.152 |
1.22 |
5.91 |
47 |
2300 |
| 10 |
18"Ø |
460 |
50 |
12 |
0.152 |
1.82 |
5.91 |
70 |
3500 |
| 11 |
18"Ø |
460 |
50 |
16 |
0.152 |
2.43 |
5.91 |
94 |
4600 |
| 12 |
33"Ø |
840 |
38 |
10 |
0.5 |
5 |
15 |
150 |
10000 |
| 13 |
33"Ø |
840 |
38 |
12 |
0.5 |
6 |
15 |
180 |
12000 |
| 14 |
33"Ø |
840 |
38 |
14 |
0.5 |
7 |
15 |
210 |
14000 |
| |
|
TECHNICAL
OBSERVATION
|
TECHNICAL
SPECIFICATION
|
| |
|
- Flow
rate per unit area depends on no. of
factors such as viscosity of liquid,
filter media quality and sediments in
liquid to be filtered.
- An output of 2000
lit /hr /m2 could be considered
normal for aqueous solution with reduced
solid load.
- Selection of pump
depends on viscosity of the liquid
and output requirement.
|
|
| Wetted
parts |
: |
S.S.
304 / S.S. 316 |
| Non
Wetted parts |
: |
S.S.
304 |
| Design
Pressure |
: |
4
Kg/cm2 |
| Design
Temperature |
: |
90°C |
| Seal
Material |
: |
EPDM
(Other Optional) |
| Surface
Finish |
: |
Polished |
|
| |
|
|
|
|
