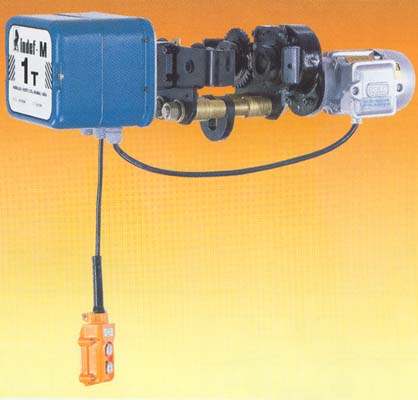

Anti drop & de-railing guide • Precision-machined runners mounted on sealed ball bearings • Available in three basic range with further adjustment of flange width • Anti Corrosive Powder coated finish • In built control panel ready to use |
|
DIMENSIONS, WEIGHTS AND PERFORMANCE DATA |
|
|
Electric |
|
Capacity Kg. |
1000 |
3000 |
|
Inside of Wheel flanges mm |
Range 1 |
58-150 |
90-160 |
|
Range 2 |
150-210 |
160-220 |
|
|
Range 3 |
210-305 |
220-305 |
|
A Seat of susp. plate to runner tread |
Range 1 & 2 mm |
89 |
110 |
|
Range 3 mm |
129 |
155 |
|
B runner tread diameter |
mm |
65 |
90 |
|
C runner tread width |
mm |
25 |
30 |
|
D runner centres |
mm |
128 |
157 |
|
E underside of runner to suspension plate |
28 |
28 |
|
F underside of runners to top of control panel mm |
120 |
120 |
|
G beam flange to Panel end mm |
287 |
287 |
|
H underside of runner to top of motor |
138 |
138 |
|
J track centerline and to motor |
Range 1 |
track widths J mm |
58-150 350-390 |
90-160 360-395 |
|
|
Range 2 |
track widths J mm |
150-210 390-420 |
160-220 395-425 |
|
|
Range 3 |
track widths J mm |
210-305 420-470 |
220-305 425-470 |
|
K depth of plate |
Range 1, 2 & 3 mm |
21 |
34 |
|
L overall length |
mm |
238 |
290 |
|
M underside of runner to flange (push) mm |
75 |
105 |
|
N underside of runner to gear tip (geared) mm |
90 |
115 |
|
Minimum rados of track curve mm |
1500 |
1500 |
|
Electric travel Weight in Kg |
Range 1 |
22 |
31 |
|
Range 2 |
23 |
33 |
|
|
Range 3 |
26 |
38 |
|
Speed M / Min. Motor HP / RPM |
10 0.25/1500 rpm |
10 0.25/1500 rpm |
|
Data Tolerance ± 10% |
