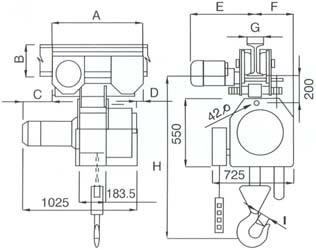

Specifications / Dimensions (mm)
|
Type |
Units |
CHIII |
||||
|
Class |
- |
II |
||||
|
S. W. L. (Tonne) |
T |
2.5 |
5.0 |
7.5 |
10 |
|
|
No. of falls |
- |
1 |
2 |
3 |
4 |
|
|
|
Fixed Suspension |
kg. |
328 |
381 |
402 |
427 |
|
Appr. Weight at |
With Electric Trly. |
kg. |
500 |
525 |
550 |
600 |
|
3Mt. Lift |
With Geared Trly. |
kg. |
376 |
451 |
553 |
578 |
|
Extra Weight per add. Mt. Lift (Approx.) |
kg. |
3.3 | 6.6 | 9.9 | 13.2 | |
|
Hoisting Speed Mts./Min |
MPM |
5.2 | 2.6 | 1.7 |
1.3 |
|
|
*Traveling Speed Mts./Min |
MPM |
17 | 17 | 17 |
17 |
|
|
Hoisting Motor |
HP(kw) |
5(3.7) | 5(3.7) | 5(3.7) |
5(3.7) |
|
|
Traveling Motor |
HP(kw) |
0.25(0.18) | 0.5(0.37) | 0.75(0.55)X2 |
0.75(0.55)X2 |
|
| A |
Electric Trolley |
mm |
730 | 730 | 730 |
930 |
|
Geared Trolley |
mm |
496 | 496 | 616 | 616 | |
| B-Min (ISMB) |
Electric Trolley |
mm |
250 | 250 | 250 |
250 |
|
Geared Trolley |
mm |
200 |
200 |
300 |
300 |
|
|
C |
Electric Trolley |
mm |
345 | 345 | 345 |
164 |
|
D |
Electric Trolley |
mm |
60 | 60 | 60 |
72 |
|
**E (Min-Max) |
Electric Trolley |
mm |
425-468 |
425-468 |
425-468 |
425-468 |
|
F (Min-Max) |
Electric Trolley |
mm |
260-303 |
325-368 |
385-4285 |
325-368 |
| G (Min-Max) | Electric Trolley | mm | 125-210 | 125-210 | 125-210 | |
| Geared Trolley | mm | 125-160 | 125-150 | 140-180 | 140-180 | |
| H (Head Room) | With Electric Trly | mm | 1050 | 1375 | 1500 | 1500 |
| With Geared Trly | mm | 1175 | 1425 | 1550 | 1550 | |
| I | mm | 42 | 51 | 67 | 75 | |
| J | Geared Trolley | mm | 25 | 76 | 130 | 76 |
| K | Geared Trolley | mm | 205 | 140 | 75 | 140 |
| L | Geared Trolley | mm | 720 | 720 | 720 | 665 |
| M | Geared Trolley | mm | 455 | 455 | 455 | 510 |
|

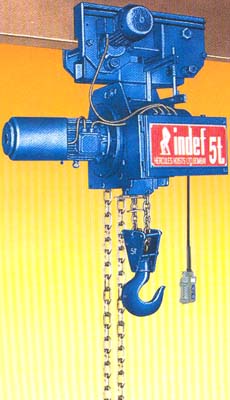

Electric Chain Hoist with Electric Trolley |
Electric Chain Hoist with Geared Trolley |
