| Conveyer Safety Switch |
 |
|
|

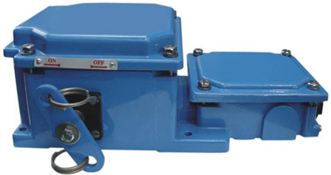

| 1) Pull Cord Switch |
| |
FEATURES:
- Housed in dust and weatherproof enclosure with IP 65 grade of Protection
- Heavy duty Cam switch with robust contacts is used to give longer service life.
- Operation handle fitted with spring steel rings at both ends for fixing ropes.
|
| |
| |
| SPECIFICATION : |
TYPE |
DATA |
|
ENCLOSURE |
Weatherproof, field mounting type, IP65 / CI, epoxy painted. |
| OUTPUT CONTACTS |
1 NO + 1 NC / 2 NO + 2 NC. |
| CONTACT RATING |
16 Amp. Resistive at 440 V AC. |
|
| |
| |
| |

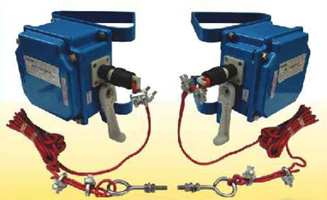

| 2) Belt Sway Switches |
| |
FEATURES:
- Housed in dust and weatherproof enclosure with IP 65 grade of Protection
- Heavy duty Cam switch with robust contacts is used to give longer service life.
- Operation handle fitted with spring steel rings at both ends for fixing ropes.
|
| |
| |
| SPECIFICATION : |
TYPE |
DATA |
|
ENCLOSURE |
Weatherproof, field mounting type, IP65 / CI, epoxy painted. |
| OUTPUT CONTACTS |
1 NO + 1 NC / 2 NO + 2 NC. |
| CONTACT RATING |
16 Amp. Resistive at 440 V AC. |
|
| |
| |
| |

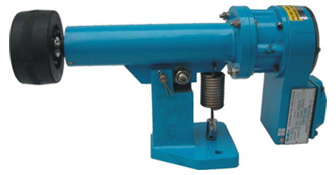

| 3) Zero Speed Switch |
| |
FEATURES:
- Available in Din Rail Mounting, Field Mounting and Panel Mounting.
|
| |
| SPECIFICATION |
TYPE |
DATA |
|
ENCLOSURE |
Field Mounting IP 65, Cast Al / Din Rail IP 30 / Flame Proof. |
| OUTPUT |
2 C/O relay contact, Rating 5 Amp resistive at 230 V AC. |
|
| |
| |
| |
| 4) Electronic Speed Switch |
| |
 Protection against Zero / Under / Over speed condition.
Under / Over / Zero speed protection.
Cast Al / Poly carbonate / Polyester enclosure.
Range : 5 to 5000 RPM Selectable.
Contact 1 NO + 1 NC / 2 NO + 2 NC.
4 to 20 mA retransmission output. |
| |
| |
| |
| 5) Electronic Belt Loading Monitor |
| |
| To monitor load as well as speed of conveyors. |
| |
| |
| |
| 6) Belt Tear / Snap Switch |
| |
 It detect torn belt condition and provide tripping.
Contact Arrangement : 2 NO + 2 NC.
Contact Rating : 10 Amp. Res. @ 110 / 240 V AC 50 Hz. |
| |
| |
| |
| |
| 7) Trip Indicating System (for Pull Cord and Belt Sway Switches) - |
| |
- It identify and display the position of actuated switch in the control room.
- Serial port RS 485 / RS 232- Modbus protocol for PC interface / SCADA.
|
| |
| |
| |
 |
| |
|
|
