Turbo Ventilator & Industrial Roof Ventilator

Turbo Ventilator is a device which exhausts hot and stale air from the working space of industries, warehouses, workshops, and other enclosed structures without the use of electricity. Turbo Ventilator utilizes wind energy to create a centrifugal force and thereby creates a region of low-pressure zone, thus exhausting hot, humid and fowl air which is continuously replaced by fresh / cool air from the outside. The slightest breeze causes the Turbo Ventilator to spin and even after the breeze has stopped, the flywheel effect of the rotor cage uses its stored energy to continuously remove air giving rise to ventilation.

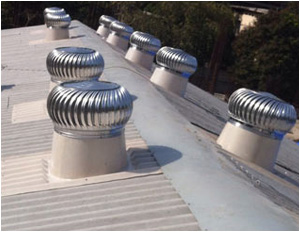

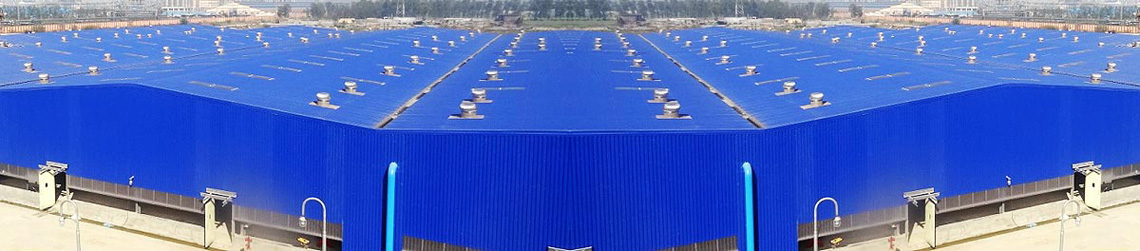

Turbo Ventilator & Industrial Roof Ventilator in Kolkata



Features:

• Available in different sizes and shapes
• Easy installation at any type of shed corrugation
• 05 Years’ warranty against manufacturing defects and onsite support
• Noise-free operations



Advantages:

• Cost effective as it needs only natural wind and no electricity
• Natural light during day time through Fiber plastic dome - hence reduces lighting load
• No maintenance - rain proof, fire-retardant and corrosion resistant
• Increases comfort level & productivity of employees
• Removes stale, damp and hot air - thus making work spaces comfortable
• Reduces condensation below the roof
• Maintains hygienic conditions by removing foul smell
• Boosts the life of roofing sheets
• Enhances the life of electronic products like PLC, Drives and others

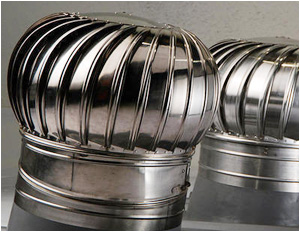

Aluminum Ventilator - Commercial Grade


Aluminum Ventilator -
Commercial Grade



• Ventilator Diameter: 24 Inch

• Top Plate: 0.4mm Stainless Steel 430 grade

• Center Shaft: Galvanized Steel 12 mm diameter shaft

• Aluminum Grade: SS 202

• Inner and Outer Arms: M.S. with Powder Coating

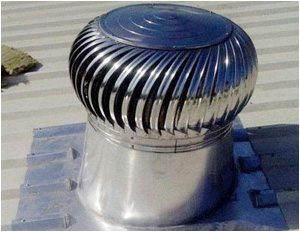

Aluminum Ventilator - Advanced Grade


Aluminum Ventilator -
Advanced Grade



• Top Plate: Aluminum 1.2 mm Alloy 8011 H2

• Center Shaft: 10 mm diameter Stainless Steel shaft within a 30 mm diameter Stainless Steel outer jacket and a PVC jacket

• Bearing: SKF bearings Cascaded within the SS jacket

• Inner and Outer Arms: M.S. with Electro Zinc Plating

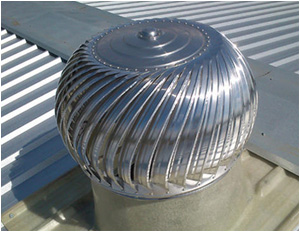

Stainless Steel (Grade 304)
for Acidic Plants


Stainless Steel (Grade 304)
for Acidic Plants



• Ventilator Make: Stainless Steel (Grade304) specially for hydrochloric acid plants

• Top Plate: 1mm Stainless Steel Grade 304

• Center Shaft: 10 mm diameter Stainless Steel 430 shaft within a 30 mm diameter Stainless Steel 430 outer jacket and a PVC jacket

• Acid resistant Base Plate

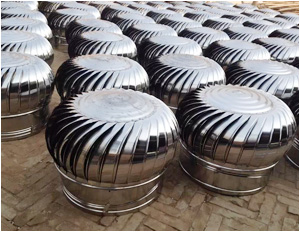

Stainless Steel (Grade 430) for Acidic Plants


Stainless Steel (Grade 430)
for Acidic Plants



• Ventilator Make: Stainless Steel (Grade430) especially for sulfuric acid plants

• Top Plate: 1mm Stainless Steel Grade 430

• Vanes MOC: 45mm Stainless Steel 430 Grade

• ISO Raisin base plate with double layered 450 glass meshes




Poly Propylene Ventilator for Acidic Plants


Poly Propylene Ventilator
for Acidic Plants



• Ventilator Diameter: 400 mm/16 inch

• Ventilator Make: Polypropylene / Nylon

• Central Shaft: Stainless Steel (Grade304)

• Bearing: Glass bearing, which are anti corrosive to any environment

• Light weight and extremely durable



Fiber Plastic Ventilator for Acidic Plants


Fiber Plastic Ventilator
for Acidic Plants



• Resistant to most chemicals and solvents

• Resistant to ultraviolet and nuclear radiation

• Resistant to weathering and chalking

• Resistant to direct sunlight and UV radiation

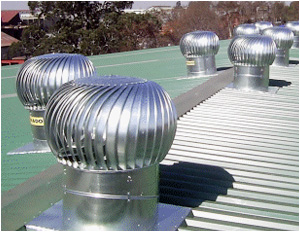

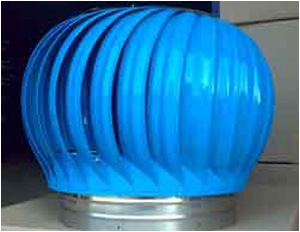

Color Coated Industrial Roof Ventilators


Color Coated
Industrial Roof Ventilators



• Polyester powder coatings are thermosetting powders based on durable Polyester resins.

• They have excellent UV resistance

• Polyesters are preferred due to their durability & resistance to aggressive weather conditions.

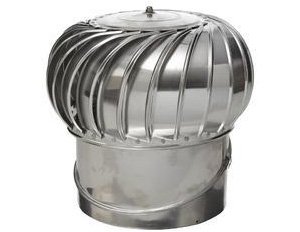

Custom Made Industrial Turbine Ventilator


Custom Made Industrial
Turbine Ventilator



• Ventilator Make: Aluminum / Stainless Steel / Polypropylene / Nylon / Fiber Plastic Coated, etc.

• Steel Make: Jindal /

• Aluminum Make: Hindalco / Balco

• Bearing: SKF / Dupont / Timken
