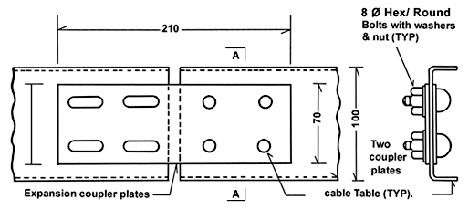

Coupler Plate for Ladder Type and perforated Type Trays
In order to maintain proper earth continuity bond, painting on surfaces in contact between coupler plates and cable tray shall be scrapped at the time of installation. |
|
|
|
|
|
|
Material : |
HR Sheet / SS Sheet/ Al Sheet, Angle etc. |
Finish : |
Red Oxide/ Enamel Paint/ Epoxy Paint/ Hot Dip Galvanised / Anodised or as per customer specification. |
|
Accessories can be made as per customer specification |
|
Schedule of permissible loads
All figures given represent the maximum permissible
uniformly distributed load in kgs. per running meter
Unsupported Free Span |
Formula
The maximum permissible point load at-mid-span may be obtained from the formula
P= ½ X U X C
Where P = maximum permissible point load in kgs. at mid-span.
U = maximum permissible uniformly distributed load in kg per running meter.
S = the particular free span in meter
Free Span Exceeding 16ft. are not recommended. |
W |
|
Size |
|
H |
600 mm |
1200 mm |
1800 mm |
2500 mm |
100 mm |
x |
1.6 mm |
x |
50 mm |
1430 |
355 |
156 |
87 |
150 mm |
x |
1.6 mm |
x |
50 mm |
1458 |
362 |
159 |
88 |
225 mm |
x |
1.6 mm |
x |
50 mm |
1498 |
371 |
160 |
89.4 |
300 mm |
x |
1.6 mm |
x |
50 mm |
1540 |
380 |
162 |
91.3 |
375 mm |
x |
2 mm |
x |
50 mm |
1955 |
483 |
210 |
116.7 |
450 mm |
x |
2 mm |
x |
50 mm |
1958 |
483 |
210 |
110.7 |
600 mm |
x |
2mm |
x |
50 mm |
1964 |
481 |
208 |
110.4 |
300 mm |
x |
2mm |
x |
62.5mm |
2680 |
664 |
290 |
16.1 |
375 mm |
x |
2mm |
x |
62.5mm |
2685 |
664 |
290 |
161.3 |
450 mm |
x |
2mm |
x |
62.5mm |
2689 |
664 |
289 |
158.9 |
600 mm |
x |
2mm |
x |
62.5mm |
2698 |
664 |
289 |
157.1 |
750 mm |
x |
2mm |
x |
62.5mm |
2707 |
666 |
287 |
155.7 |
900 mm |
x |
2mm |
x |
62.5mm |
2716 |
667 |
287 |
153.7 |
600 mm |
x |
2mm |
x |
75 mm |
3491 |
861 |
377 |
206.5 |
750 mm |
x |
2mm |
x |
75 mm |
3513 |
868 |
377 |
205.02 |
900 mm |
x |
2mm |
x |
75 mm |
3535 |
874 |
378 |
205.02 |
|
|
