Technical Data...

APPLICATION :
Large variety of brake and clutch components of all types of plant including certain heavy road transport vehicles and tractors.

TECHNICAL DATA (Average)
Compressive strength.......................
( for 10% compression)
Tensile strength................................
Shear strength.................................
Specific gravity..................................

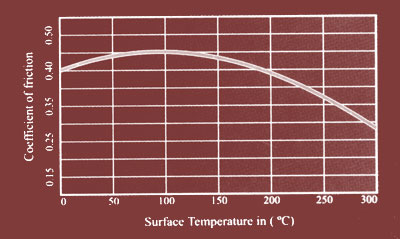

Co-efficient of friction for design.......
Rivet holding capacity.......................

625 Kgs / Cm2 (8875 lbs / sq.")

248 Kgs / Cm2 (3522 lbs / sq.")
142 Kgs / Cm2 (2016 lbs / sq.")
1.75 Cms / cc (0.06 lbs / CU")
0.38 - 0.40
900 Kgs / Cm2 (12800 lbs / sq.")

MATING SURFACES :
Good quality close grain or alloy cast-iron. If steel, then forged or cold with a brinell of 200 or over.
RECOMMENDED OPERATING TEMPERATURES :
Maximum temperature.......................
Maximum continuous temp................
Maximum velocity..............................

260° C ( 500° F)
125° C ( 257" F)
18 m/ sec. ( 60 ft. / sec.)

SIZE RANGE :
Supplied in form of Rolls (Flexible)
Length — 15 mtrs. ( 50 Ft.)
Thickness — 4.8 mm ( 3/16" ) to 25.4 mm (1")
Width — 25.4 mm ( 1" ) to 476.25 mm ( 183/4")
