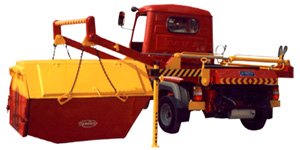

1 cum. Capacity Dumper Placer system mounted on Bajaj GC Max Diesel Auto Rickshaw or Tata ACE Small Commercial Vehicle, heavy duty structure made with 75 X 40 M.S channel, square M.S Box made with 14 & 16 Swg. M.S. sheet, 2 nos. Heavy sliding jack, 2 nos hydraulic cylinder, oil tank, filter, D.C Valve, 2.5 Litres capacity oil pump with all standard accessories. |
|
1 cum. Capacity Dumper Placer system mounted on Bajaj GC Max Diesel Auto Rickshaw or Tata ACE Small Commercial Vehicle, heavy duty structure made with 75 X 40 M.S channel, square M.S Box made with 14 & 16 Swg. M.S. sheet, 2 nos. Heavy sliding jack, 2 nos hydraulic cylinder, oil tank, filter, D.C Valve, 2.5 Litres capacity oil pump with all standard accessories. |
|

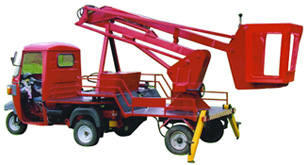

Sky jacker / Platform mounted on Bajaj GC Max Diesel Auto Riskshaw or Tata ACE Small Commercial Vehicle working height 22 ft bucket fiber glass case insulated 600 volts. Hydraulic cylinder- 2 nos, D C valves 2 vos with emergency hand pump. 2 nos. Mechanical operate heavy duty stabilizer. |
|
Open Drain Cleaning machine mounted on Bajaj GC Max Diesel Auto Rickshaw or Tata ACE Small Commercial Vehicle operated garbage from open drain / under ground from 32 ft deep and empty into the hopper. The telescopic boom are lifted up and down and swivelling hydraulically to make the position of bucket and unload the slit into the hopper with all standard accessories.
- Bucket Capacity : 20 liters
- Wire rope : 6X19construction fiber core having nominal breaking strength 1.5 tons.
|
|
1 cum / 0.5 Capacity Tipper mounted on Bajaj GC Max Diesel Auto Rickshaw or Tata ACE Small Commercial Vehicle for Door to Door Garbage collection.
|
|
Multijet : High pressure jet cleaner for multi application like cleaning of choked sewer lines / drainage, toilet flushing, footpath cleaning street washing by water sprinkler, container or vehicle washing and small fire extinguishing having water storage tank of 500 Liters capacity, 10 H.P self start greaves Diesel Engine and imported high pressure water triplex plunger pump of discharge upto 13 LPM and pressure upto 160 Bar and spray gun with all standard accessories. |
|
ROAD SWEEPING MACHINE
- Heavy duty drive by any 35 H.P or above Tractor with P. T. O
- Made from 10 swg. M. S sheet and heavy duty structure
-
With extra heavy Gear Box. Brush made from steel wire, drive by double chain. At rear end 2nos. 12”X 2” rubber bonded wheel fitted with 6205 bearing 4 nos.
- Overall Length- 2400 MM
- Overall Width- 1490 MM
- Overall Height- 1000 MM
- Sweeping Width- 2100 MM
- Brush outer Diameter- 500 MM
- Dust collector capacity- 0.2 CU. Mtr.
|
|
|
|
D’ SILT MACHINE
Open Drain Cleaning machine mounted on Bajaj GC Max Diesel Auto Rickshaw or Tata ACE Small Commercial Vehicle operated garbage from open drain / underground from 32 ft deep and empty into the hopper. The telescopic boom are lifted up and down and swivelling hydraulically to make the position of bucket and unload the slit into the hopper with all standard accessories.
- Bucket Capacity : 20 liters
- Wire rope : 6X19construction fibre core having nominal breaking strength 1.5 tons.
|
|
|
|
MOBILE TOILET VAN
NO. OF TOILET - 10 NOS.
SLUDGE –TANK CAPACITY – 1800 LITERS
WATER TANK CAPACITY – 1300 LITERS |
|
