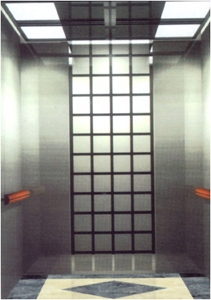

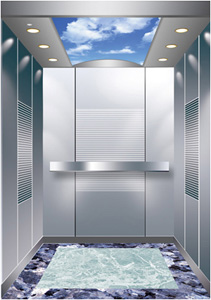

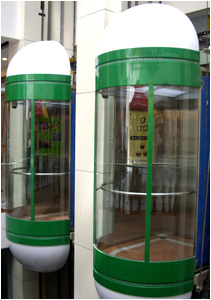

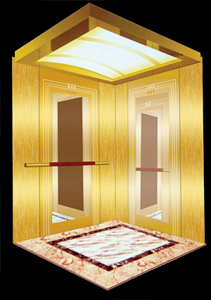

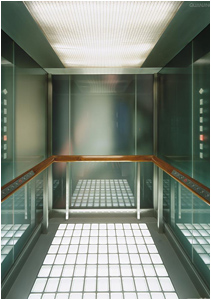

| :: Passenger Elevator :: |
| |
| |
|
| |
| |
| |
| |

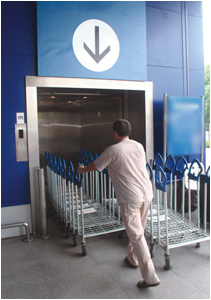

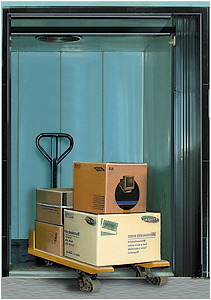

| :: Goods Elevators :: |
| |
| |
|
| |
| |
| |

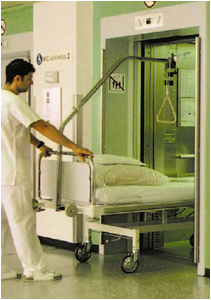

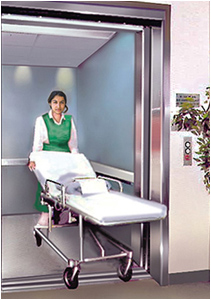

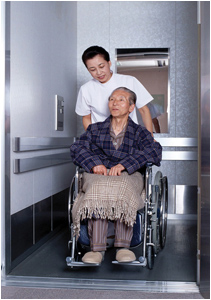

| :: Hospital Elevators :: |
| |
| |
|
| |
| |
| |
| |

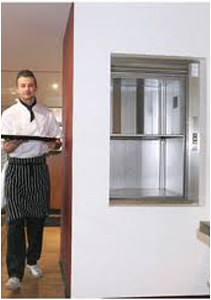

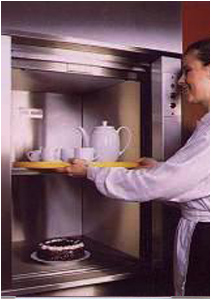

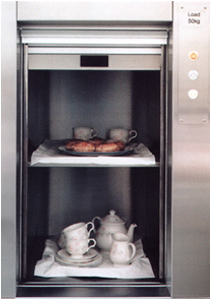

| :: Dumb Waiters :: |
| |
| |
|
| |
| |
| |
| ............................................................................................................................................................................................................................................. |
| |
| |

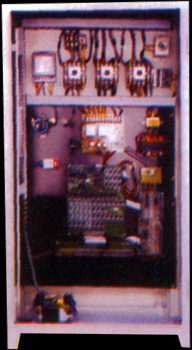

 Housing M.S. Powder coated panel with locking system.
Power Supply : 415 VAC/5 OHZ, 4 wire supply
Inputs: All inter locking inputs, safety inputs, position inputs call registration inputs.
Out puts:
- Motor Supply o/p
- Brake Supply o/p
- cam coil / Door motor o/p
- 220v. A. C Supply o/p
- Emergency Alarm o/p
Salient Feature :-
- in built phase failure & over load protections
- position sense signal.
(V:Z) Floor cut, read & Proximity Switches.
- Electro-mechanical locking System for safe operation.
|
| |
| ............................................................................................................................................................................................................................................. |
| |
| |
| |
| |

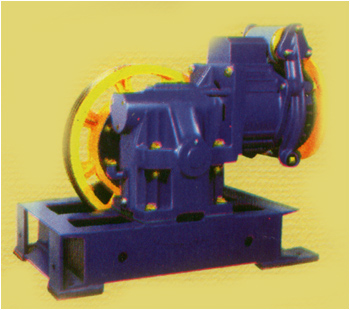

Model |
120 |
Ratio |
40 : 1 |
Linear speed (m/s) |
0.65 |
Load Carrying Capacity |
408 Kg |
Apply input power |
5HP/3.7 Kw |
Sheave diameter |
535mm |
Oil capacity |
2.5 liters |
RPM of mot (SYNC) |
920 |
Weight of complete unit |
275 to 300 kg |
|
 |
|
| |
| |
| ............................................................................................................................................................................................................................................. |
| |
| |

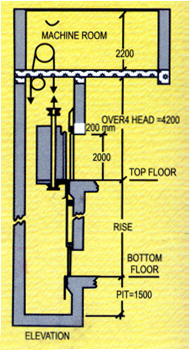

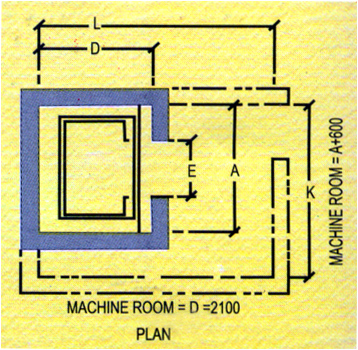

| Civil Dimension: |
| |
|
 |
 |
|
| |
| |
| |
