| Hoses Assembly & End Fittings.... |
| |
| |
- For Quick Release Coupling:
|
|
- In Line, In Port, Protective Screen Tube Fittings:
|
Kamlock Quick Connect Fittings- |
|
|
For quick, tight leakproof connections to PIPES, HOSE, TUBING, and TANKS in sizes ranging from 1/2" to 12" manufactured in Brass, Aluminium, Stainless Steel, and Polypropylene. They enable pipe and hose connections to be made without the use of hand tools thus eliminating the difficulty in making threaded connections or a flanged conection.
Almost instantly connections can be made to an outlet, a faucet, a valve, a storage tank or coupling lengths of hose.
Connection is made by simply pushing the coupler over the adaptor and pulling the arms down to the sides of the coupler.
Cam-couplings are standard throughout the Petroleum industry where leakproofness, speed and simplicity of connection and utmost reliability are required.
The size for couplers or adaptors corresponds to the nominal size of the hose or pipe to which it will be connected.
STANDARD SIZES
ARE |
1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10" and 12".
Thread sizes available are:- BSP Straights, BSP Tapered, NPT and NST fire hose thread. |
| PART 'A' |
Male adaptor with female thread. |
| PART 'B' |
Female coupler with male thread. |
| PART 'C' |
Female coupler with hose tail. |
| PART 'D' |
Female coupler with female thread. |
| PART 'E' |
Male adaptor with hose tail. |
| PART 'F' |
Male adaptor with male thread. |
|
|
Tube Fittings Division has developed a series of in-line or in-port protective screen tube fittings designed for “last chance” protection.
The screen fittings—which are not intended to replace typical filtration equipment—offer nominal micron ratings ranging from 65 to 480 microns and are available in standard sizes -4 through -12 for use with Parker’s Triple-Lok® 37°flare and Seal-Lok™ O-ring face seal fittings. Constructed with stainless steel screen elements, the -4 size features a basket-style screen, while the remaining sizes are dome style.
| Typical Screen Fittings Applications: |
| |
|
| 1. |
Gage and instrumentation protection |
| 2. |
Shielding of critical hydraulic components such as pump compensator controls, load-sensing controls, proportional valves and relief valves |
| 3. |
Prevent clogging of precision orifices |
| 4. |
Protection of costly components in test bench circuits from particle contamination created by failed components |
| 5. |
Reduce “attachment” induced contamination that damages hydraulic and pneumatic tools and attachments |
|
| |
| The world’s leading producer of tube fittings, rubber and thermoplastic hose and fittings, brass fittings and valves, quick-connect couplings and assembly tools. |
|
Flanged Kamlocks, Dust Plugs And Dust Caps Also Available C/W Chains. |
|
|
| |
|
Top>> |
| |
|
|
|
|
|
 GLOBAL’s compact one-piece, Barb fittings offer a quick, economicalway to connect polyethylene tubing. In addition to the standard fittings available, custom Dubl-Barb fittings to meet your exact requirements are available. |
|
 Pneumatic Heavy Duty Compression fittings, Compress-Align is a pre-assembled brass compression fitting with a captive sleeve. Sleeve is always oriented for correct installation, visible for inspection before and after installation. More quickly assembled than either flare or standard tapered sleeve compression. Compress-Align bodies are interchangeable with standard compression fitting bodies.
|
| |
|
|
|
|
|
From design to delivery, the focus of the Brass Products Division is quality and service. Their Engineering Department develops everything from prototypes, to product modifications, to improvements in design and manufacturing techniques. Utilizing state-of-the-art technologies, their engineers can provide a high level of field support, including custom design work.
Quality standards are continually improved through their extensive S.P.C. programs covering every phase, from incoming raw materials to machine standards. To satisfy environmental concerns, the Brass Products Division has a complete brass chip recovery and recycling program. This also helps them control the cost of using highly recyclable materials.
When it comes to fittings GLOBAL Brass Products Division is poised to provide premier customer service. |
|
GLOBAL’s  compression style air brake fittings meet D.O.T. FMVSS 571.106 air brake requirements fittings also meet the functional requirements of SAE J246 and SAE J1131. Utilizes ribbed sleeve for compression and positive grip. Use with SAE J844 type A & B nylon tubing.
|
| |
- Hose & Tube Fittings Division
|
| |
GLOBAL manufactures a broad line of tube fitting and adapters including the Triple-Lok® fitting (37° flare), Ferulok® fitting (flareless), Intru-lok® fitting (brass flareless), EO® fitting (metri c flareless), EO®-2 fitting (metric flareless with elastomeric seal), Seal-LokTM fitting (O-ring face seal), Pipe Fittings and Adapters, JIS fittings, Hydraulic Flanges and Adapters, which are offered in a variety of port ends - NPTF, SAE Straight Thread, BSPP, BSPT, ISO and metric. |
|
| |
|
|
| |
|
Top>> |
| |
|
|
|
|
|
 |
|

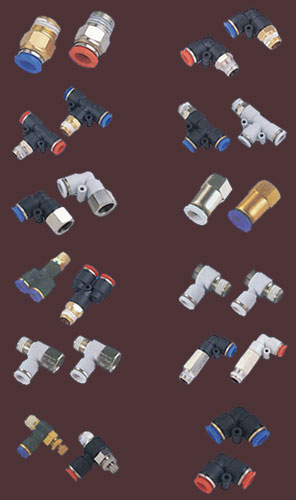

Pneu-Edge Fittings feature a consistently sharp, single-barb design which provides a tighter grip and seal than standard multiple barbs. These precision machined fittings ensure permanent polyureth ane tubing installation without the need for clamps. Straight connectors, tees, elbows, crosses and couplings are available in a wide variety of sizes and materials to accommodate numerous fluid handling circuits.
|
| Pneu-Edge Features: |
| |
| 1. |
Pneumadyne’s captured o-ring design provides a superior seal ensuring a leak resistant fitting |
| 2. |
A smaller shank behind the barb allows Polyurethane tubing to relax, providing a tighter grip and seal |
| 3. |
A smoother tubing approach angle eases tubing installation |
| 4. |
Solderless joint technology eliminates solder voids, potential leaks and heat discoloration or distortion of materials. Components are threaded together and sealed with sealant to eliminate pull-out potential and ensure straight barb alignment |
|
|
|
|
 |
 |
 |
|
|
|
|
