SAMPLE SKETCHES OF A FEW TOOLING SHOWING ONLY IMPORTANT TOLERANCES OF DIMENSIONS AND GEOMETRICAL RELATIONSHIPS AMONGST THEM INDICATING PROCESS CAPABILITY.

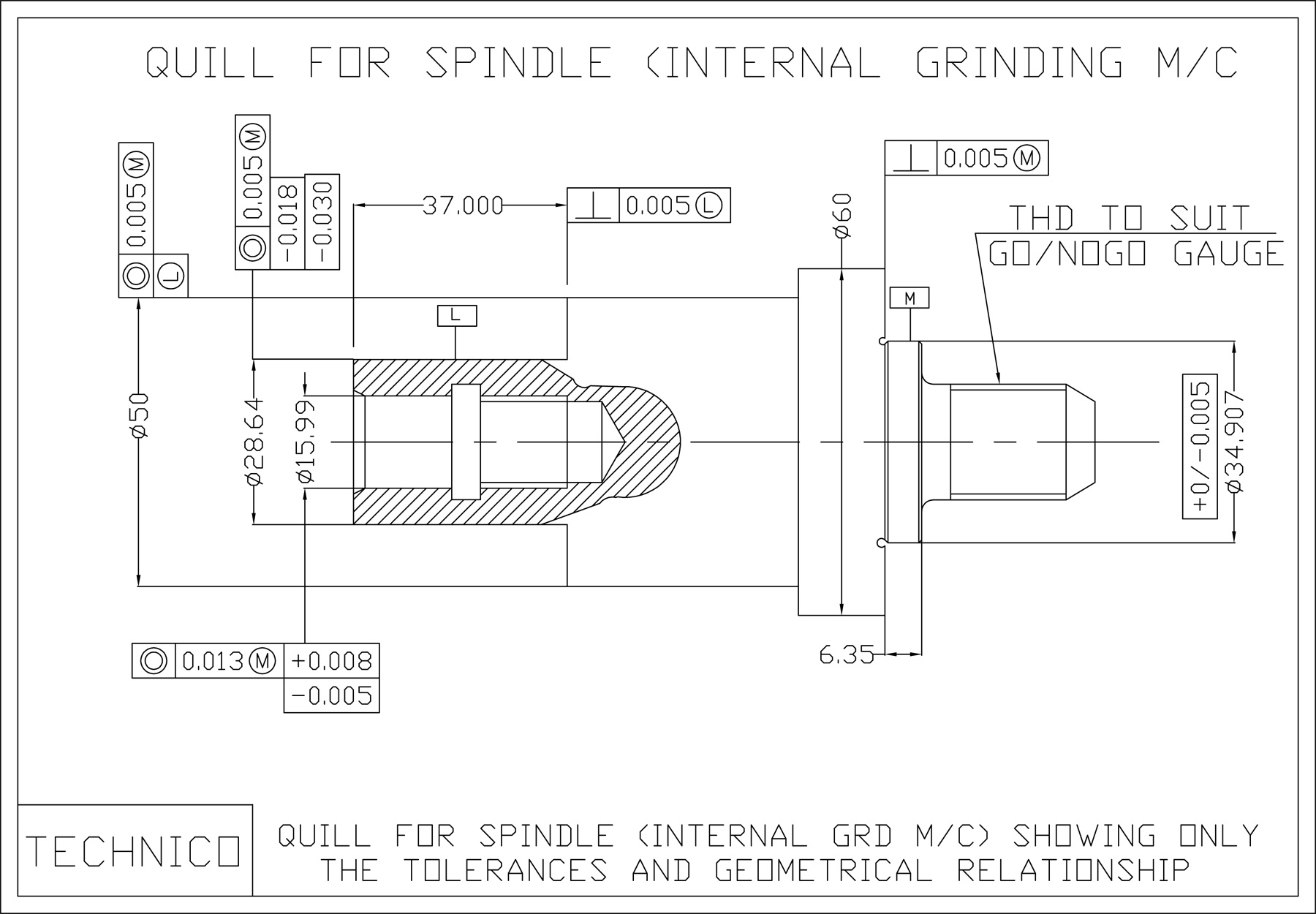

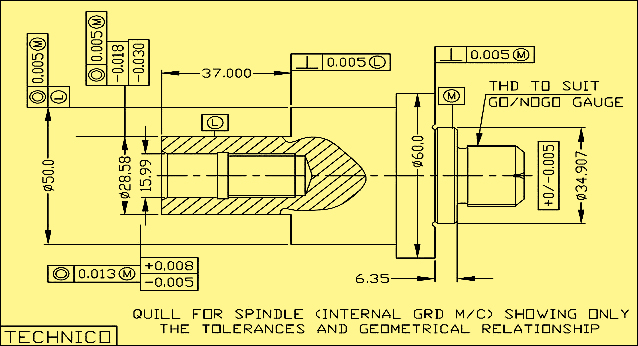

QUILL FOR SPINDLE (INTERNAL GRINDING M/C )
Click on the image for larger view.

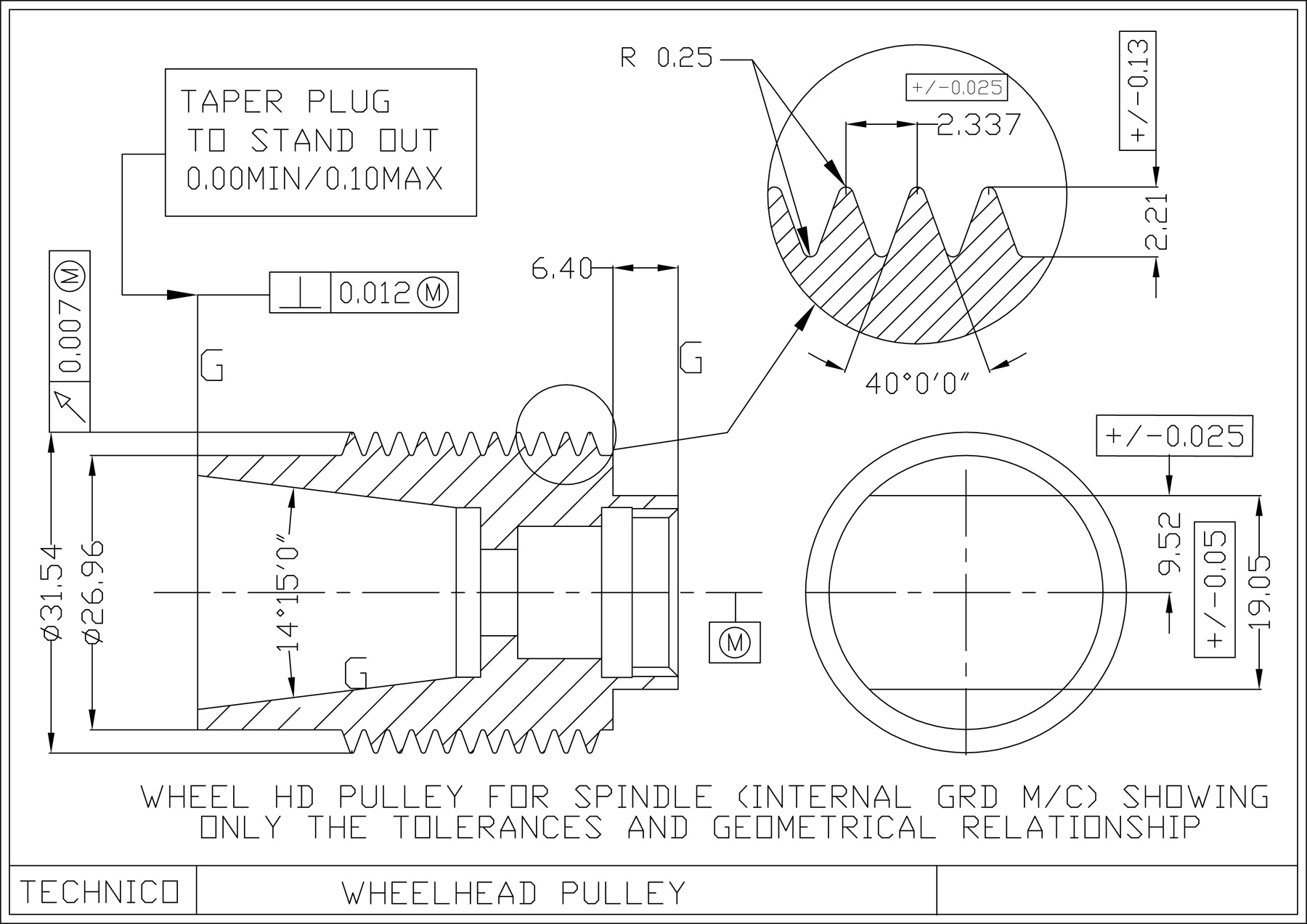

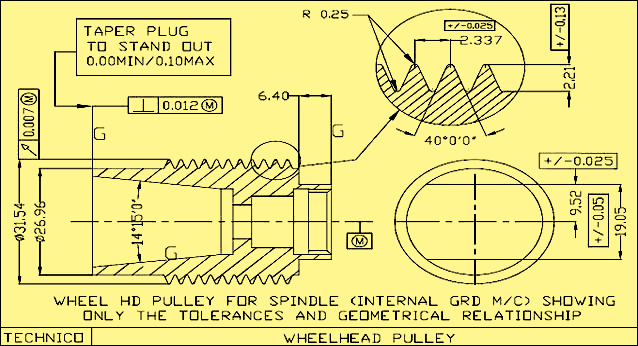

WHEEL HEAD PULLY FOR SPINDLE (INTERNAL GRINDING M/C )
Click on the image for larger view.

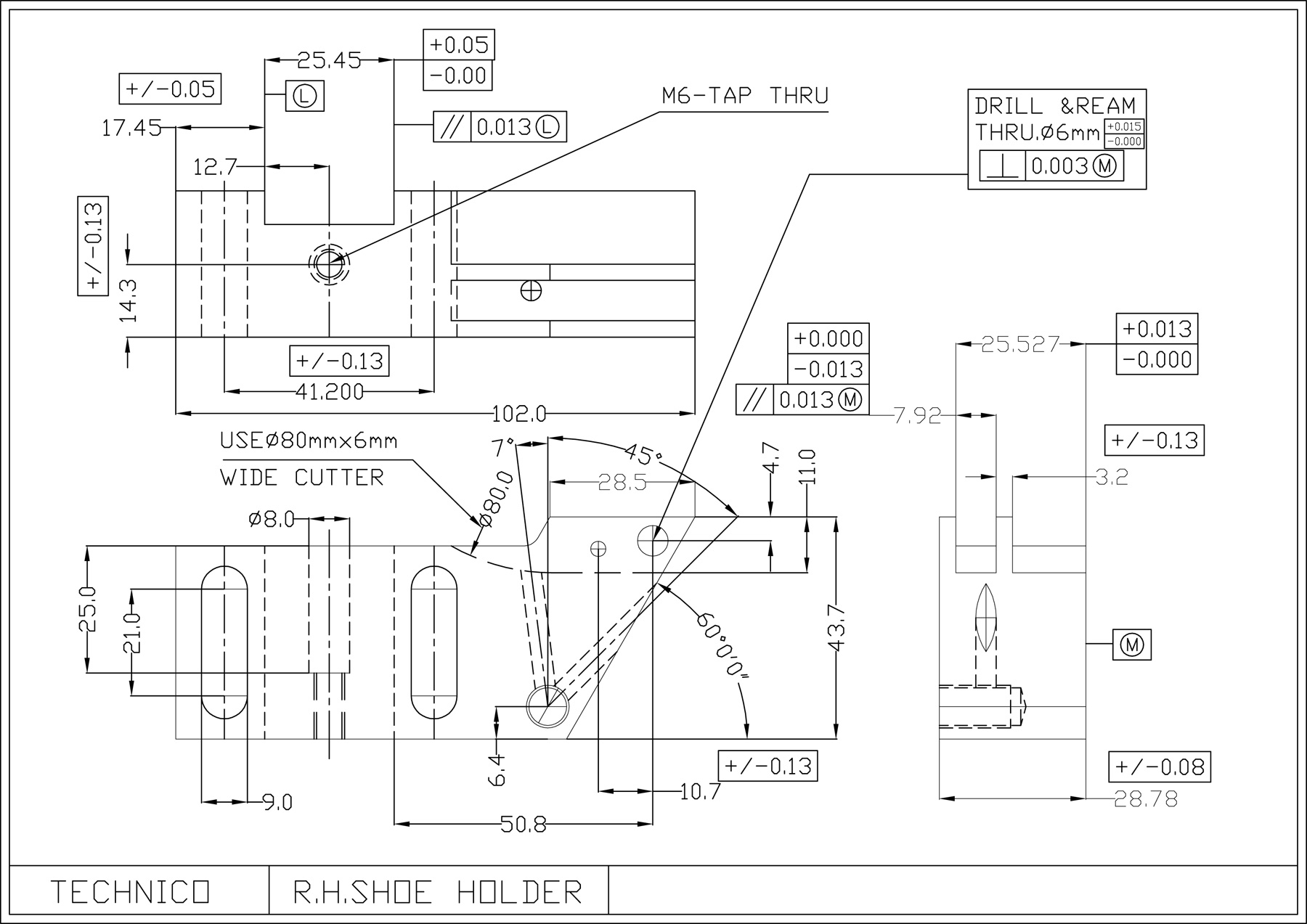

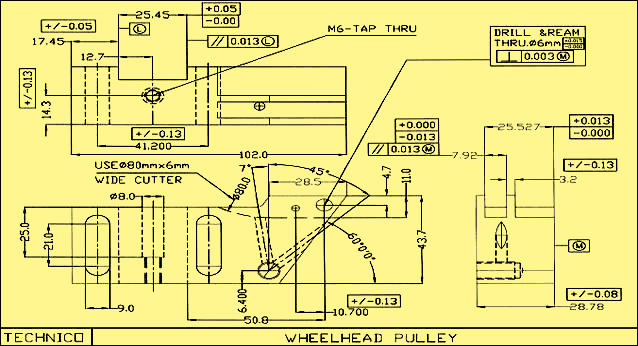

SHOE HOLDER FOR SHOE GRINDING IN BEARING INDUSTRIES.
Click on the image for larger view.

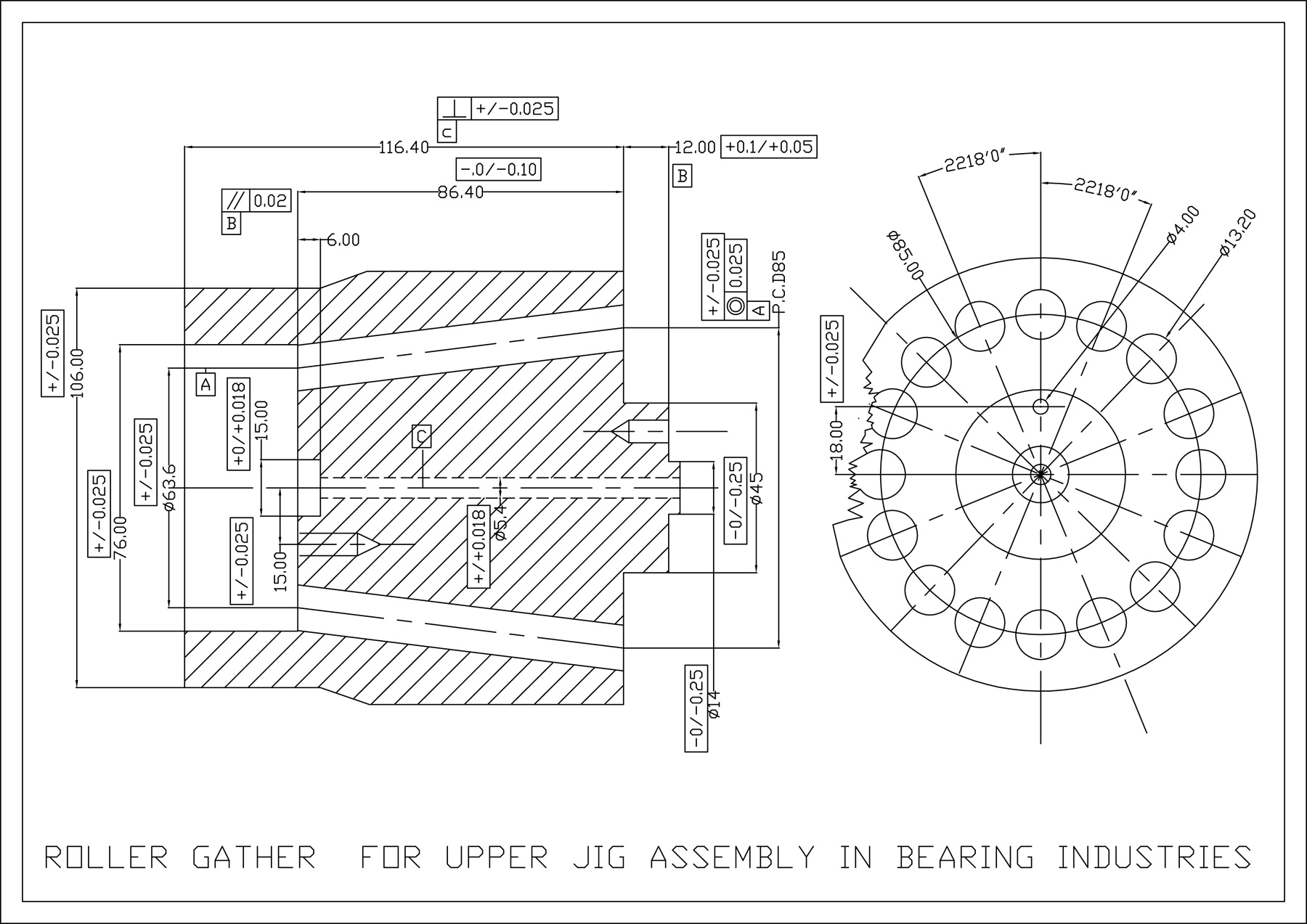

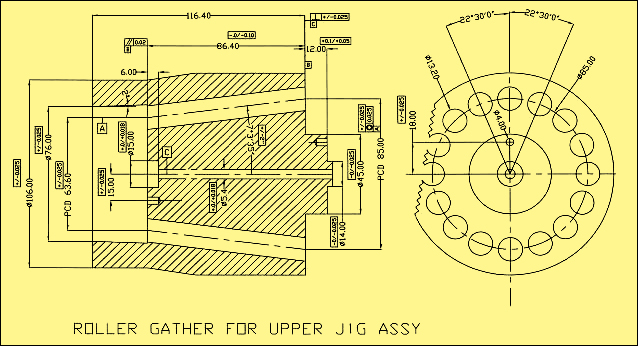

ROLLER GATHER FOR UPPER JIG ASSEMBLY IN BEARING INDUSTRIES
Click on the image for larger view.

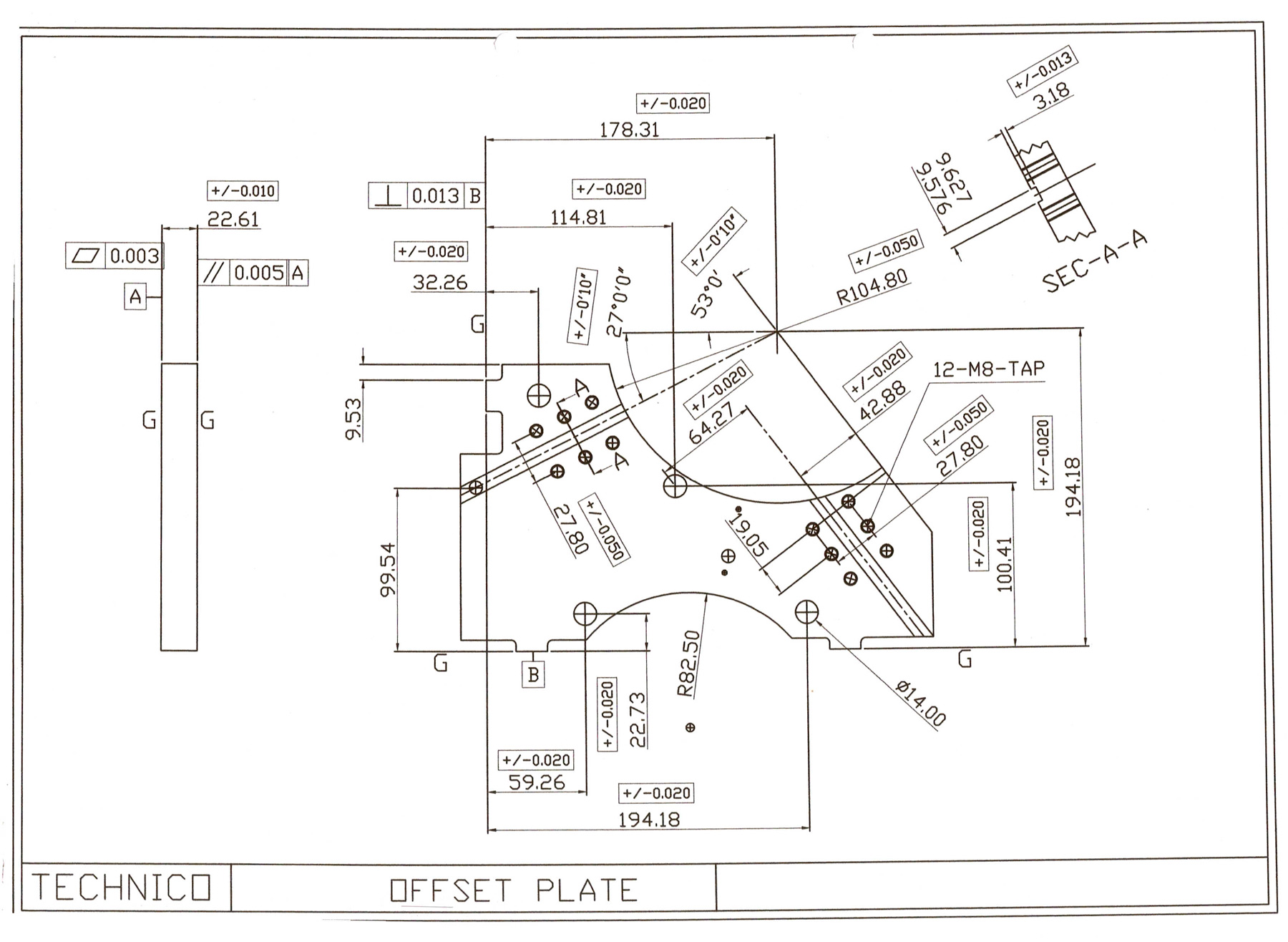

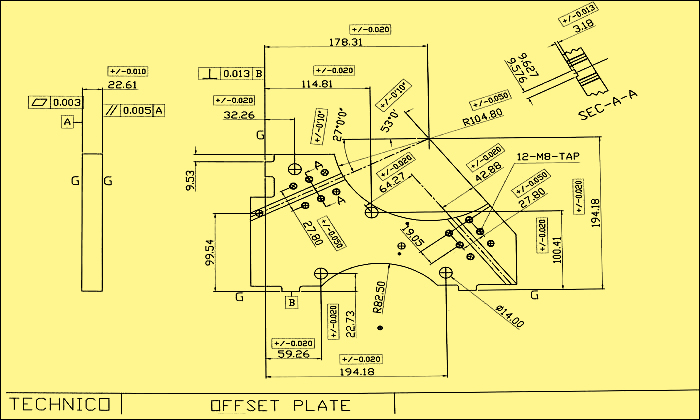

OFFSET PLATE FOR SETTIING OF SHOE HOLDERS FOR GRINDING SHOES
