Products Details:


Civcon Brands Pumps you can rely on registered trademark of Civcon® Pump for Civcon Industrial Corporation Products.


Monoblock:



  • Suitable for portable applications
  • Overhead storage water tank filling
  • Domestic water supply
  • Lawn and garden watering


Centrifugal Pumps:


  • Water supply for Industrial Commercial Establishment like Factories, Hotel, Lodges etc.
  • In hospitals, marriage halls
  • At construction sites
  • Irrigation of small farms and gardens.
Click For Larger View





Click For Larger View

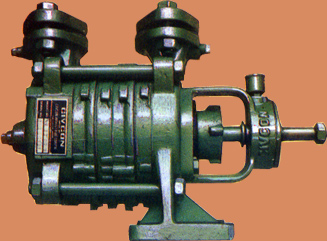

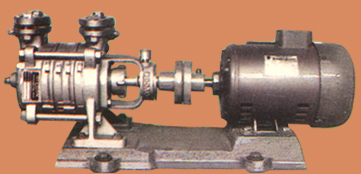

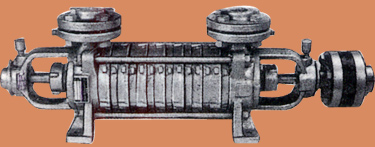

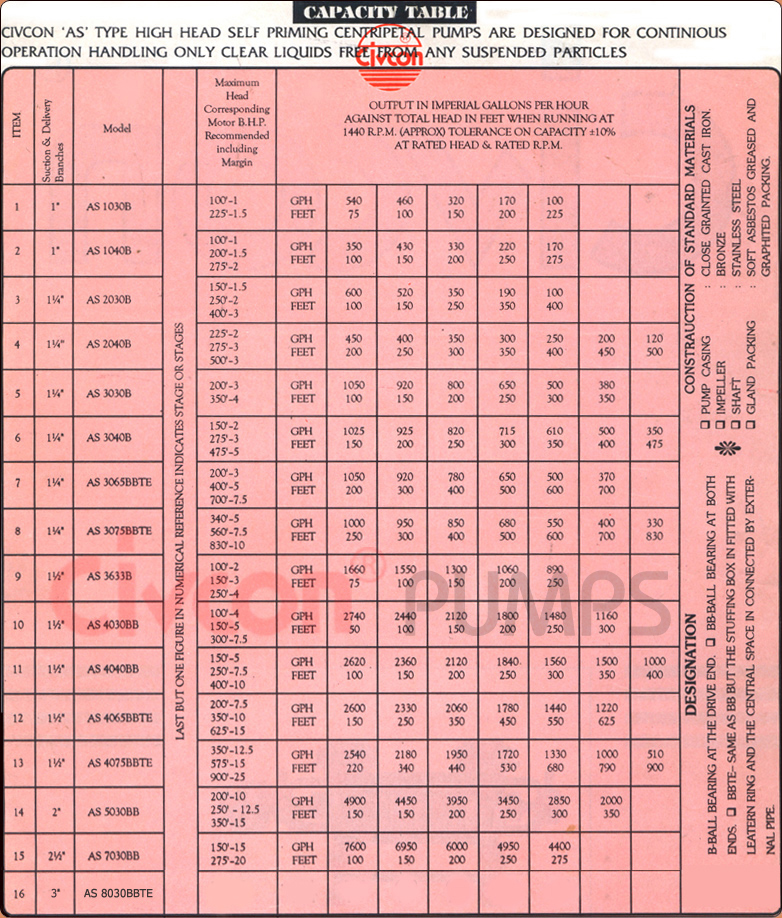

CIVCON 'As' type High Head Self Priming Centripetal Pumps are Designed for continuous operation handling only liquids free from any suspended particles.





Application:

  • Boiler Feed, Industrial; Refreigration, Marine, Fuel Oil Transfer of Liquids, Gas Washing etc.

  • Maximum Permissible speed of the Pump is 1800 R. P. M.

  • Direction of Rotation - Clock wise seeing from the driving end

  • Maximum Suction Lift is 8 mtrs. (26'-0" Feet including Frictional Loses) depending upon the speed and the capacity reduces over 4 mtrs. of suction lift.

  • Suction and Delivery sides valves must be opened before starting the Pump

  • Before starting the Pump it must be filled with Liquid to ensuring priming

  • When the pump execution for standard purpose maximum permissible temperature of the Liquid is 60ºC

  • In application of Hot Water / Liquids (Designated by "H" is available for Liquids with Temperature up to 100ºC

  • Capacity will be reduced approximately 10% for Hot water or Liquids. Pump designated by "H"

Construction of Standard Materials:
Pump Casing : Close Grainted Cast Iron
Impeller : Bronze
Shaft : Stainless Steel
Gland Packing : Soft Asbestos Greased and Graphited Packing



CIVCON 'D' Type Self - Priming Centrifugal PumpFor

House hold & Industrial purposes suitable for clear liquids.
Use with Tube-wells. Open-wells & Reservoirs
Suitable for Pumping clear water.
Construction:
  • Impeller-Bronze
  • Shaft Stainless Steel
  • Shaft & Impellers only moving parts
  • B-Ball Bearing at the driving end BB-Ball bearing at both ends
  • The Shaft Rotes clock wise when seen from the driving end of the pump









I
T
E
M

N
O

M
O
D
E
L

Suction &|
Delivery Branches

Motor
B.H.P. Recommended

LAST
   FIGURE
IN    NEUMERICAL    REFERENCE    INDICATES    STAGE
OR
STAGES

CAPACITY TABLE IN  LITRES PER MINUTE ( L.P.M. )  & GALLONS PER HOUR
(G.P.H.) WHEN RUNNING AT 1425 R.P.M.( Approx )
Accuracy About 10% ±

Feet

30

40

50

60

80

100

120

140

160

180

200

Meter

9.0

12.5

15.0

18.3

24.4

30.5

36.6

42.7

48.8

54.9

61.0

1

D101B

1"

¼

G.P.H. L.P.M.

300 21.0

200 15.0

150 12.0



2

D102B

1"

½

G.P.H. L.P.M.



300 22.5



250 18.75

170 13.5









3

D201B

1"

½

G.P.H. L.P.M.

400 30.0

350 27.0



150 12.0















4

D202B

1"

¾

G.P.H. L.P.M.



500 37.5



390 29.3

280 21.0

200 15.0







5

D203B

1"

1

G.P.H. L.P.M.





600 45.0

440 33.0

400 30.0

340 25.5

290 21.8

170 16.5







6

D301B

1"

¾

G.P.H. L.P.M.

730 54.6

700 48.7



400 30.0











7

D302B

1"

1

G.P.H. L.P.M.



990 74.3



750 56.2

630 47.5

490 36.8











8

D303B

1"

2

G.P.H. L.P.M.



1000 75.0



850 63.7

750 56.2

650 48.7

500 37.5

460 34.5

390 29.3

280 21.0

250 18.75


1  METER = 3.28 FEET                             4.5 LITRES = 1  GALLON                       1  C.U. FEET = 6.25 GALLON

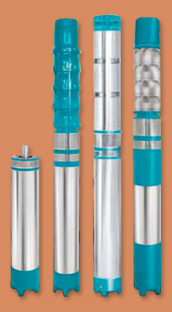

Submersible Pumps & Mono Submersible Pumps:

  • Pumping water from Borewell
  • Pumping water from Openwell
  • Overhead storage water tank filing
  • Domestic and Industrial water supply
  • Modern Technology
  • Less electricity consumption



Jet Pumps:

  • Pumping water from borewell
  • Overhead storage water tank filling
  • Domestic  water supply


Ideal for Domestic & Industrial supply of fresh water from open well, Tube-well and under ground tank.

How to Drive: "CIVCON" Deep well ejecto pump can be driven by Electric motor - 220/440 volts or Diesel / Petrol / Kerosene Engine by depending upon the speed. It can be coupled to motor or Engine directly or with a V-Belt.

Series Suction Lift Capacity Discharge Heat
CE 50 to 200 Upto 120 ft. 36 (Metres) 2350 US GPH. (8900 LPH) 90 ft. 27 (Metres)
CE 300 & 500 Upto 140 ft. 43 (Metres) 7200 US GPH. (27200 LPH) 160 ft. 49 (Metres)

Salient Features:
  • Minimum Initial cost - Greater quantity of water at a lower cost.
  • Reliability - Advanced-design, quality control under experts in the product with graded casting. Bronze Impeller and Rotary Seal offers all time reliability.
  • Easy Maintenance - Easy maintenance due to apply of specialised expertise on the product and smooth performance
  • Long Life - Only one moving part in the pump; No use of lubrication; prevent of rust or corrode in stainless steel shaft gives Long Life
  • Corrosion Free - All Gun-metal Nozzle, ventury tube and ejector body brings no corrosion
  • Leakage Free - Use of rotary mechanical water seal causes no leakage
  • Off-Set Installation - The pump is installable at the most desired location from the wells, Tube-wells or underground Tanks.
  • Ejector Assembly - Two types; Twin type and packer type for open well and Tube-well
Packer Twin Duplex CE-series direct coupled ejecto pump





Construction:

  • Pump Casting - Cast Iron • Impeller - Cast-Iron (Semiopen Working Vanes)

  • Shaft-High Quality Stainless Steel • Packing - Soft Asbestos Grased & Graphited Packing

  • Total Head - Static Suction Lift + Static Delivery Height + Friction Loss in Pipes & Fittings

  • Motor of Lerger B. H. P. must be used - (I) In case of Pumping Liquids of higher specific gravity (II) If the pump works at lower head than shown in the capacity table

  • section Lift - 15 feet

  • positive Lubrication to broanze bearing and C. I. Gland

  • rotation - The Shaft rotates clockwise when seen from the driving end of the pump

  • Drive - The pump may be directly coupled with motor or driven by belt.

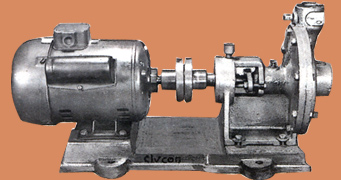

NON SELF-PRIMING SINGLE STAGE CENTRIFUGAL PUMPS


I
T
E
M

SUCTION &
DELIVERY
DRANCHES IN M.M.

MODEL

MOTOR
B.H.P. IN
K.W.

CAPACITY TABLE IN LITRES PER MINUTE (L.P.M.) AGAINST METRE (MET) WHEN RUNNING AT 2850/2900 R.P.M. (Approx)

1

25X25

VT201B

.37

LPM MET

68
9

50
12

30
15

20
17

2

32X32

VT301B

.75

LPM MET

165
12

140
15

100
9

75
21

3

65X50

VT401BB
'C'

2.2

LPM MET

450
20

390
25

110
30

75
33

4.

65 X50

VT401BB
'A'

3.7

LPM MET

470
28

450
30

400
33

350
36

I
T
E
M

SUCTION &
DELIVERY
BRANCHES
IN INCH

MODEL

MOTOR B.H.P.

CAPACITY TABLE IN LITRES PER MINUTE (LP.M.) AGAINST METRE (MET) WHEN RUNNING AT 2850/2900 R.P.M. (Approx)

1

1X1

VT201B

½

GPH
FEET

900
30

650
40

400
50

250
55

2

1¼ X 1¼

VT301B

1

GPH FEET

2150
40

1850
50

1500
60

1000
70

3

2½ X 2

VT401BB
'C'

3

GPH FEET

5440
60

4800
70

3900
80

2000
90

4.

2½ X 2

VT401BB
'A'

5

GPH FEET

6400
90

6000
100

5400
110

4600
120
