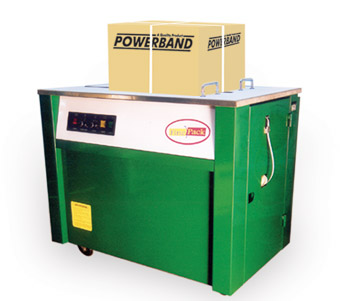

Semi Automatic Strapping Machine - KZB-1 High-Table : |
The KZB-1 High Table Strapping Machine is a uniquely designed ,user friendly device offering excellent features.
 Features :
- Instant heating in only 20 seconds.
- Durable electro-magnetic clutch transmission increases motor life ,strapping speed and reduces overall machine noise.
- The unique design of control switch,independent PCB control for feeding & heating make the unit maintenance friendly.
- External adjustable tension knob provides easy and simple operation.
- One touch machine operation energy saving mode activates within 1.5 sec of non-use and allows for instant operation.
- Stainless steel frame is available for strapping moisturised products.
Specification :
- Max.Strapping Size: Not Stipulated
- Min.Strapping Size : 60(W)*30(H)mm
- Strapping Speed : 1.5 Second/Strap
- Strapping Force : 55Kg.(max.)
- Plastic Strap Used : 6-15mm
- Power : 220v,50H,320w
- Dimensions (L*W*H) : 900*580*750mm
- Weight : 100 kg
|
| <<Back |
|
|

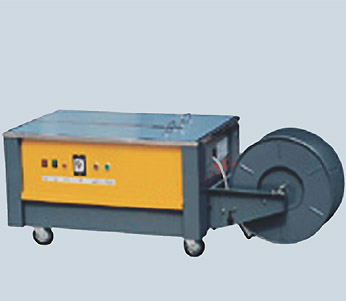

Semi Automatic Strapping Machine - KZB-2 Low-Table : |
| |
The KZB-2 Low Table Strapping Machine is a uniquely designed ,user friendly device offering excellent features.
 Features :
- Instant heating in only 20 seconds.
- Durable electro-magnetic clutch transmission increases motor life ,strapping speed and reduces overall machine noise.
- The unique design of control switch,independent PCB control for feeding & heating make the unit maintenance friendly.
- External adjustable tension knob provides easy and simple operation.
- One touch machine operation energy saving mode activates within 1.5 sec of non-use and allows for instant operation.
- Stainless steel frame is available for strapping moisturised products.
Specification :
- Max.Strapping Size: Not Stipulated
- Min.Strapping Size : 60(W)*30(H)mm
- Strapping Speed : 1.5 Second/Strap
- Strapping Force : 55Kg.(max.)
- Plastic Strap Used : 6-15mm
- Power : 220v,50H,320w
- Dimensions (L*W*H) : 1450*580*410mm
- Weight : 90 kg
|
| <<Back |
|

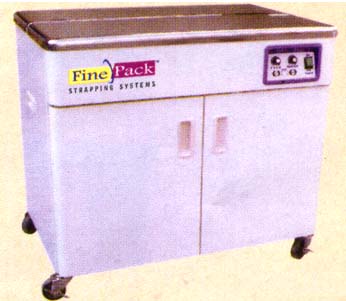

Semi Automatic Strapping Machine - D56 : |
| |
The D56 Strapping Machine is a uniquely designed ,user friendly device offering excellent features.
Features :
- Instant heating in only 20 seconds.
- Durable electro-magnetic clutch transmission increases motor life ,strapping speed and reduces overall machine noise.
- The unique design of control switch,independent PCB control for feeding & heating make the unit maintenance friendly.
- External adjustable tension knob provides easy and simple operation.
- One touch machine operation energy saving mode activates within 1.5 sec of non-use and allows for instant operation.
- Stainless steel frame is available for strapping moisturised products.
Specification :
- Max.Strapping Size: Not Stipulated
- Min.Strapping Size : >/=100mm
- Strapping Speed : 1.5 Second/Strap
- Strapping Force : 40Kg. (max.)
- Plastic Strap Used : 5-15.5mm
- Power : 220v,50H,400w
- Dimensions (L*W*H) : 785*545*750mm
- Weight : 65 kg
|
| <<Back |
|
| |

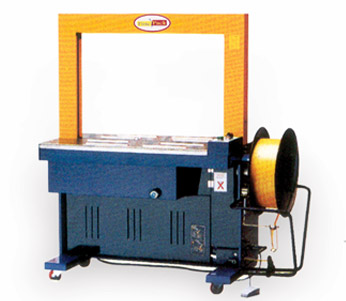

Fully Automatic Strapping Machine - KZA-8060 High-Table : |
| |
The KZA-8060 High-Table Strapping Machine is a durable,quick - performing and power-saving device that provides excellent features.
Features :
- Fast Strap Change : Front loading and inserting of strap for convenient service.
- Ergonomic Design : Provides comfortable and safe operations for various sizes,shapes and materials of straps.
- Fast Strapping : Strapping is quickly accomplished in only 1.5 seconds.
- Simplified Structure : Makes unit easy to operate and maintain.
- Suited for many kinds of straps : Applicable strap width from 6 to 15 mm.Strap width change is made by simply adjusting the guide without having to replace any parts.
- Fast Heating Perormance : Equipped with a high performance heater for fast stable heating,and secure jointing results.
- Power Saving : The machine stops automatically after 60 seconds when not in use.
- Safety : The spool dispenser is built inside the machine CE certified electronic components ensure dependable control.
Specification :
- Max strapping size : 850(w)*600(h)mm
- Min strapping size : 80(W)*50(H)mm
- Strapping speed : 2.15 sec/turn
- Strapping force : 50-700N (adjustable)
- Plastic strap used : 9-15mm (PP or PE)
- Power : AC,220v,50H,850w
- Dimension (L*W*H) : 1420*650*1500(mm)
- Weight : 235kg
|
| <<Back |
|
| |

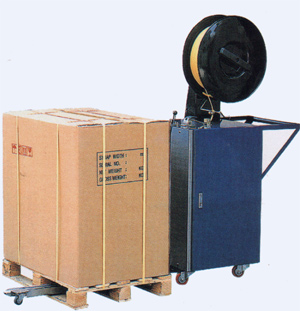

Fully Automatic Strapping Machine - XT-8026 Pallet Semi Automatic : |
| |
 The XT-8026 Pallet Semi Automatic Strapping Machine is a durable,quick - performing and power-saving device that provides excellent features.
Features :
- Fast Strap Change : Front loading and inserting of strap for convenient service.
- Ergonomic Design : Provides comfortable and safe operations for various sizes,shapes and materials of straps.
- Fast Strapping : Strapping is quickly accomplished in only 1.5 seconds.
- Simplified Structure : Makes unit easy to operate and maintain.
- Suited for many kinds of straps : Applicable strap width from 6 to 15 mm.Strap width change is made by simply adjusting the guide without having to replace any parts.
- Fast Heating Perormance : Equipped with a high performance heater for fast stable heating,and secure jointing results.
- Power Saving : The machine stops automatically after 60 seconds when not in use.
- Safety : The spool dispenser is built inside the machine CE certified electronic components ensure dependable control.
Specification :
- Max strapping size : -----
- Min strapping size : <520mm
- Strapping speed : 2.2 sec/strap
- Strapping force : 50-700N (adjustable)
- Plastic strap used : 9-15mm (PP or PE)
- Power : AC,220v,50H,600w
- Dimension (L*W*H) : 530*640*1370(mm)
- Weight : 88kg
|
|
|
| |

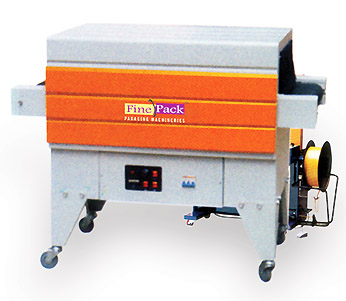

Shrink Packing Machine - FP-4525 : |
| |
 Compact construction high efficiency.The use of metallic heater results in lower power consumption.Great air flow provides excellent heat distribution for an even shrink.Digital temperature controller.DC motor drive with variable speed conveyor.Teflon coated rod/net conveyor.Mounted castor wheels for easy mobility.
- Voltage - 220V/380V (3PH)
- Power - 8 W
- Conveyor Loading - 15 kg
- Heating Furnace Size (mm) - 800*450*250
- Dimension (L*W*H) (mm) - 1200*610*1240
- Sealing Speed (m/min) - 0-10
- Weight - 90kg
|
| <<Back |
| |
|
