                    PASSENGERS ELEVATORS : -

  |


                    “BIDYUT”  Passenger Elevators are the vital link between passengers and the various floor  destinations they desire to reach silently, safely and swiftly.
                      Single speed lifts  operate at a maximum speed of 40 meters (130 ft) per minute powered by  specially designed lift duty Single Speed motors.  High Speed lifts are  manufactured with self leveling devices. Within a given speed range, floor  leveling is adequate for normal passenger capacity. as per I.S.  |

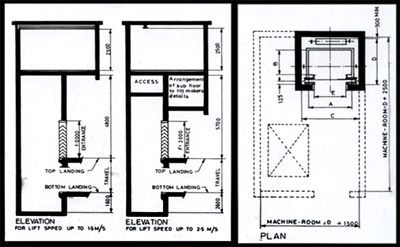

                    SPACE  PLAN :-   |


                      |




                        LOAD  |
                        CAR-INSIDE  |
                        LIFT-WELL  |
                        ENTRANCE  |
                        MACHINE ROOM  |


                        PER SONS  |
                        KG  |
                        A  |
                        B  |
                        C  |
                        D  |
                        E  |
                        K  |
                        L  |


                        4  |
                        272  |
                        1100  |
                        700  |
                        1900  |
                        1200  |
                        800  |
                        3100  |
                        3800  |


                        5  |
                        340  |
                        1100  |
                        800  |
                        1900  |
                        1300  |
                        800  |
                        3100  |
                        3900  |


                        6  |
                        408  |
                        1100  |
                        1000  |
                        1600  |
                        1400  |
                        760  |
                        3100  |
                        3900  |


                        8  |
                        544  |
                        1300  |
                        1100  |
                        1900  |
                        1900  |
                        800  |
                        3400  |
                        4400  |


                        10  |
                        680  |
                        1350  |
                        1300  |
                        1900  |
                        2100  |
                        800  |
                        3400  |
                        4600  |


                        13  |
                        884  |
                        2000  |
                        1100  |
                        2500  |
                        1900  |
                        900  |
                        4000  |
                        4400  |


                        20  |
                        1360  |
                        2000  |
                        1550  |
                        2500  |
                        2400  |
                        1000  |
                        4000  |
                        4900  |





                          SPEED MPS   |
                          PIT DEPTH  |
                          OVER HEAD  |


                          UPTO 1.50  |
                          1600  |
                          4800  |


                          OVER 1.50  |
                          2600  |
                          6700  |


                         |



                      FREIGHT or GOODS ELEVATORS :  -

                      |


                    Goods  / Freight Elevators manufactured by “ BIDYUT ”  make goods transportation very efficient from  any floor to every floor. A properly planned and designed goods elevator will  always handle more volume of material with ease and efficiency resulting in  increased productivity.                      Unlike  passenger lifts, these lifts operate at considerably reduced speeds. The  control system in this type of lifts is usually of the semi-automatic type. The  lift-car is designed to withstand the heaviest load traffic. Suitable  protection at the entrance is given according to requirements. This ranges  from swing gates and M. S. Channeling for Auto Doors.  All safety  gears, required winder the Indian Factory Act, are provided in the lifts.

                      The recently  introduced Two Speed telescopic type gates, working with electric door  operators can also be provided.   |

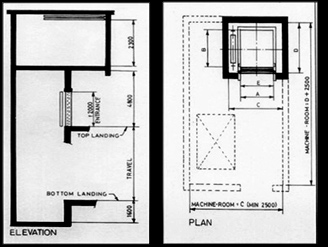

                    SPACE PLAN :-   |


                      |




                        LOAD  |
                        CAR-INSIDE  |
                        LIFT-WELL  |
                        ENTRANCE  |
                        MACHINE ROOM  |


                        KG  |
                        A  |
                        B  |
                        C  |
                        D  |
                        E  |
                        K  |
                        L  |


                        500  |
                        1100  |
                        1200  |
                        1900  |
                        1600  |
                        1100  |
                        2500  |
                        4100  |


                        1000  |
                        1400  |
                        1800  |
                        2300  |
                        2200  |
                        1400  |
                        2500  |
                        4700  |


                        2000  |
                        1700  |
                        2500  |
                        2600  |
                        2900  |
                        1700  |
                        2600  |
                        5400  |


                        3000  |
                        2000  |
                        3000  |
                        2900  |
                        3400  |
                        2000  |
                        2900  |
                        5900  |


                        4000  |
                        2500  |
                        3000  |
                        3400  |
                        3400  |
                        2500  |
                        3400  |
                        5900  |


                        5000  |
                        2500  |
                        3600  |
                        3500  |
                        4300  |
                        2500  |
                        3400  |
                        6800  |





                          LOAD KG  |
                          SPEED MPS  |
                          PIT DEPTH  |
                          OVER HEAD  |


                          500-3000  |
                          0.25-1.0  |
                          1600  |
                          4800  |


                          4000-5000  |
                          0.25  |
                          2200  |
                          7400  |


                         |


                    HOSPITAL ELEVATORS : -

  |


                    From  simple transportation of a patient on wheelchair to wheeling away a critical  patient on bed without disturbing his life supports system with doctors and  nurses attendance, smoothly silently and swiftly, without jerks and shocks. “BIDYUT”  Elevators carry out this task in style. Vertical transportation system for  modern hospitals have special requirement such as spacious & durable car,  smooth & comfortable travel, accurate stop with inch up & inch down  push button control in car, emergency control features and above all,  reliability with safety. The car dimensions are as per the Indian Standard  requirements for Hospital lifts.  |

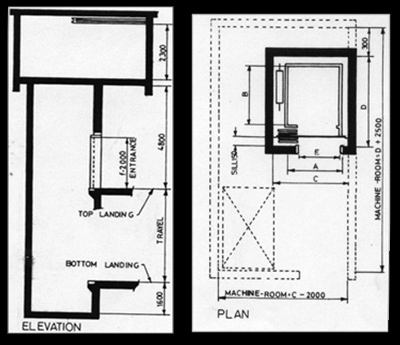

                    SPACE PLAN :-   |


                      |




                        LOAD   |
                        CAR-INSIDE   |
                        LIFT-WELL   |
                        ENTRANCE   |
                        MACHINE ROOM   |


                        PER SONS   |
                        KG   |
                        A   |
                        B   |
                        C   |
                        D   |
                        E   |
                        K   |
                        L   |


                        15  |
                        1020  |
                        950  |
                        2400  |
                        1700  |
                        3000  |
                        800  |
                        3700  |
                        5500  |


                        20  |
                        1360  |
                        1300  |
                        2400  |
                        2200  |
                        3000  |
                        1200  |
                        4200  |
                        5500  |


                        26  |
                        1768  |
                        1600  |
                        2400  |
                        2350  |
                        3000  |
                        1200  |
                        4350  |
                        5500  |





                          SPEED MPS   |
                          PIT DEPTH   |
                          OVER HEAD   |


                          0.40 to 1.50  |
                          1600  |
                          4800  |


                          Over 1.50  |
                          2600  |
                          6700  |

                                              |

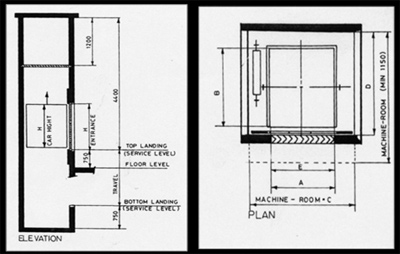

                    ELECTRIC DUMB WAITERS : -

  |


                    “BIDYUT” Manufacturer of Elevators /  Dumbwaiters are definitely a boon to large commercial organizations like  hotels, restaurants etc. They can be designed to suit a specific application  like carrying mails, food & other light weight stuff. The electric dumb waiters  handle weight from 100 Kgs to 250 Kgs. at speeds ranging from 0.25 to 0.50  metres per second. Automatically operated BIDYUT dumb waiters are quick and  silent. Control systems panel are selected on number of floors to be serviced  and the intensity of service. Additional features like car location indicators,  audio/visual signals to announce the arrival of the service car can also be  incorporated.   |


                    | SPACE PLAN :-  |


                      |




                        LOAD  |
                        SPEED  |
                        CAR-INSIDE  |
                        LIFT-WELL &
                           MACHINE ROOM  |
                        MACHINE ROOM
                          ENTRANCE   |


                        KG  |
                        MPS  |
                        A  |
                        B  |
                        H  |
                        C  |
                        D  |
                        E  |
                        H  |


                        100  |
                        0.50  |
                        700  |
                        700  |
                        800  |
                        1200  |
                        900  |
                        700  |
                        800  |


                        150  |
                        0.50  |
                        800  |
                        800  |
                        900  |
                        1300  |
                        1000  |
                        800  |
                        900  |


                        200  |
                        0.25  |
                        900  |
                        900  |
                        1000  |
                        1400  |
                        1100  |
                        900  |
                        1000  |


                        250  |
                        0.25  |
                        1000  |
                        1000  |
                        1200  |
                        1500  |
                        1200  |
                        1000  |
                        1200  |

                      |


                    |   |
