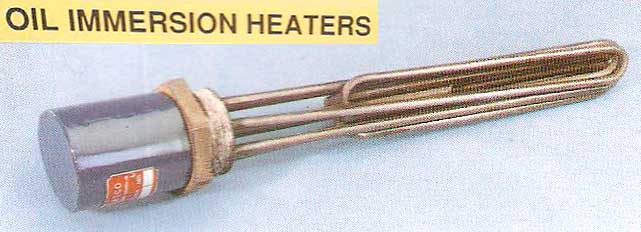

Oil Immersion Heaters...

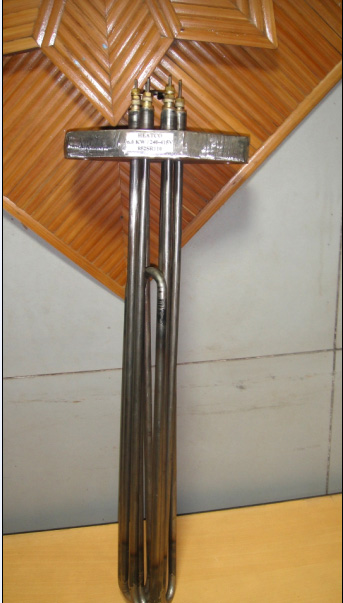

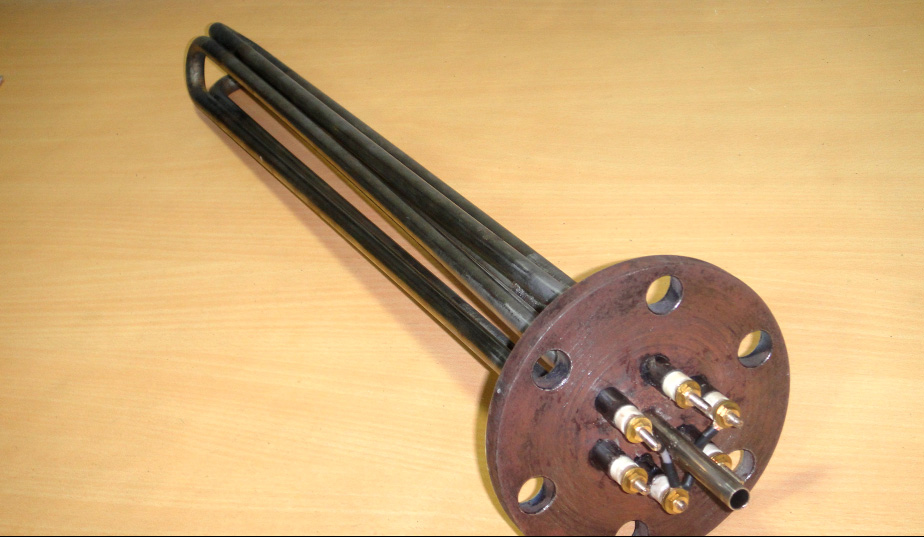

HEATCOOil Immersion Heaters are fabricated from mild steel tubing, brazed to mild steel flanges. These heaters incorporate thermostat pockets and terminal covers.







Applications : heating fuel oils, and in oil circulating pre-heaters, heat exchangers and similar equipment.


Type

Wattage

Voltage

 Clamping lip
at either end
(mm)		 Overall size
(mm)		 Connections
(mm)

HC/1/17

1000

230

436

1

2½"

HC/1.5/17

1500

230

436

1

 2½"

HC/2/17

2000

230

436

1

 2½"

HC/3/17

3000

230/400

436

3

 2 ½"

HC/4/23

4000

230/400

575

3

 2½"

HC/6/17

6000

230/400

436

3

 2½"
