Air / Finned Air Heaters ...

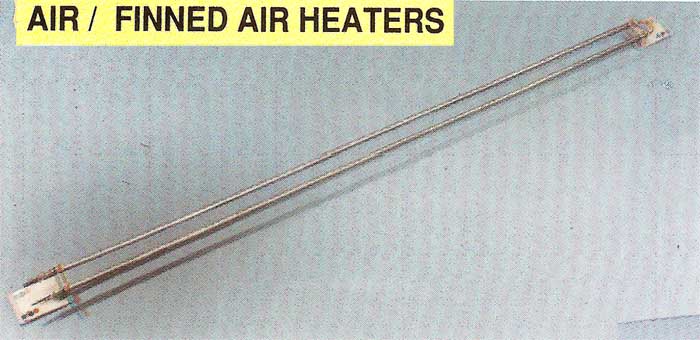

HEATCO Air Heaters are fabricated from chrome nickel steel tubes and are specially suited for exposed and semi-exposed areas.

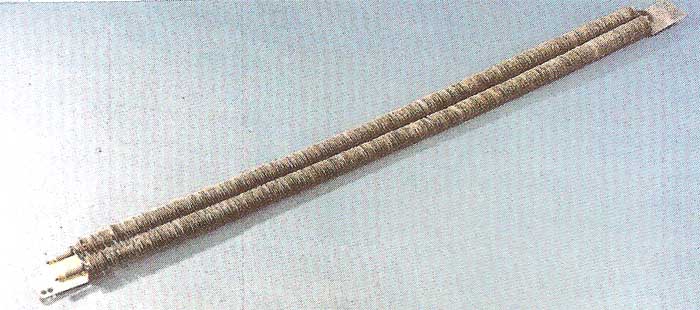

Applications : baking and curing of paints, lacquers, varnishes, chemicals and adhesives; also for drying metals, powders, sand, paper, textiles and other similar materials. Finned Air Heaters are also made from chrome nickel steel tubing. The finns help in rapid and uniform heat transfer for forced air heating. Fitted with finns, the overall width will be 75 mm.





Applications : forced air heating as in ovens, air ducts, industrial processes and load resistors wherever heated air is required.



Type

Wattage

Voltage

U-tube length and
outside diameter
(mm)
Width tube
centre to centre
(mm)
Overall
dimensions
(mm)

HC/AH/10

500

230

248x8.5

35

365x55

HC/AH/24

1000

230

609x8.5

35

725x55

HC/AH/30

1000

230

760x8.5

35

877x55

HC/AH/30

1500

230

760x8.5

35

877x55

HC/AH/39

1500

230

1000x8.5

35

1115x55

HC/AH/39

2000'

230

1000x8.5

35

1115x55
