Double Diaphragm Slurry Pump
KDP - 250 & 170
For Shaft sinking, Drives, Decline, Ramps, Tunnels & Dams etc.
KDP - 250
Head - 50 - 70 Mtrs.
Working Pressure - 70 - 80 psi and 100 cfm Consumption
Discharge - 250 Lpm KDP - 170
Head - 40 Mtrs.
Working Pressure - 60 - 70 psi and 70 cfm Consumption
Discharge - 150 Lpm |
| Double Diaphragm Slurry Pump |
| |
FEATURES |
KDP-250 |
KDP-170 |
| 1 |
WEIGHT |
60 KG |
25 KG |
| 2 |
DIMENSIONS |
20" X 17" X 34" |
17" X 12" X 24" |
| 3 |
DISCHARGE |
250-400 LPM / 15000-24000 LPH |
150-250 LPM / 9000-15000 LPH |
| 4 |
HEAD CAPACITY |
50 METER VERTICAL |
35-40 METER VERTICAL |
| 5 |
AIR CONSUMPTION |
90-100 CFM |
70-80 CFM |
| 6 |
AIR PRESSURE |
6-7 KG/CM2 80/90 PSI |
5-6 KG CM2 70/90 PSI |
| 7 |
SUCTION SIZE |
3"(75 MM) |
2"(50 MM) |
| 8 |
DELIVERY SIZE |
2" (50 MM) |
2"( 50 MM) |
| 9 |
SUCTION LIFT |
10 FEET |
10 FEET |
| 10 |
STROKE CAPACITY |
90-100 PER MINUTE |
60-80 PER MINUTE |
| 11 |
MAX.SIZE OF SOLID |
3/8"(10 MM) |
5/16" (8 MM) |
| 12 |
LUBRICANT |
SERVONEUM
100 |
| 13 |
SELF PRIMING |
YES |
YES |
| 14 |
SUBMERSIBLE |
YES |
YES |
| 15 |
MATERIAL OF CONSTRUCTION |
ALLUMINIUM ALLOY
CASTING |
|
| |
 |
Swastik Exhaust Fan
For underground mines, shaft sinking & tunnels.
4000 RPM
Discharge 2000 CFM at 200 meter length
with 100 mm W.g.
Working at 70 - 80 psi &
100 cfm air consumption |
| |
|
| |
|
 |
Swastik Air Mover
For Underground mine,
shaft sinking & tunnels Working pressure -50-70 psi
& 70-80 cfm air consumption,
Discharge -20 feet (6 mtrs.) |
| |
|
| |
|
 |
Rockwell Jack Hammer 330
A new concept in Marble Drilling, Metal Mines, Tunnels, Dam & Shaft Sinking etc.
New Model, One Touch Operation, Few Parts, Low Maintenance Heavy & Long Chuck Nut, Double Sided Pawls & Steel Rifle Nut Newly Designed, Foot Rest for easy & Effective Drilling Low Air Pressure & Low Air Consumption.
Models :
- 330 HD - HAND HELD DRY TYPE DRILL
- 330 HW - HAND HELD WET TYPE DRILL
- 330 PW - PUSHER DRIVE WET TYPE DRILL
|
| No. |
FEATURES |
300 HD |
330 HW |
330 PW |
| |
|
|
|
|
| 1. |
Weight |
25 Kg. |
25 Kg. |
23 Kg. |
| 2. |
Over All Lenght |
24 " |
24 " |
24 " |
| 3. |
Air Connection |
3/4" (19 mm) |
3/4" (19 mm) |
1" (25 mm) |
| 4. |
Water Connection |
N. A. |
1/2" (12 mm) |
1/2" (12 mm) |
| 5. |
Chuck Shank |
7/8" (22 mm) |
7/8" (22 mm) |
7/8" (22 mm) |
| 6. |
Air Pressure |
6 Kg (87 PSI) |
6 Kg (87 PSI) |
5-6 Kg (72-87 PSI) |
| 7. |
Air Consumption |
97 CFM |
97 CFM |
120 CFM |
| 8. |
Blows Per Minute |
2300 |
2300 |
2600 |
| 9. |
Cylinder Bore |
3" (76.2 mm) |
3" (76.2 mm) |
3" (76.2 mm) |
| 10. |
Piston Stroke |
2" (51 mm) |
2" (51 mm) |
2" (51 mm) |
| 11. |
Handle Type |
BAR Handle |
BAR Handle |
'D' Handle |
| 12. |
Foot Rest |
Yes |
Yes |
No |
| 13. |
Single Value |
Yes |
Yes |
Yes |
|
Dry Drill
:
This light weight and air flushed Rockdrill
is ideal for various types of surface drilling in Mines &
Quarries for medium as well as continuous drilling. 22 mm Hex
T.C.T. Drill Rods can be used to make holes up to 6 metre
depth in 27 to 40 mm diameter. It is a heavy duty Rock drill
with proven performance. |
Wet Drill :
This is
the most reliable water flushed Rockdrill siutable for
underground and tunnel work for horizantal and inclined
drilling. In conjunction with a Pusher-leg, hole from 27 to 40
mm diameter up to 6 metres depth can be drilling with 22 mm
hex T.C.T. Drill steel.
The cost os per metre of hole
drilled is low because of
fast. |
| |
Rockwell Drifter 120
| NET WEIGHT |
LENGHT |
PISTON DIA |
STROKE |
IMPACT |
AIR CONSUMPTION AT 6 KG.
CM2 |
STANDARD CHUCK |
| 70 Kg. |
31" |
4.720"
120 MM |
2.560"
65 MM |
1900/ MIN |
350 CFM |
1½" 38 LEYNER SHANK CLOSE
TYPE |
|
 |
| HOSE
CONNECTIONS |
| DRIFTER |
ROTATION |
FLUSHING
WATER/AIR. |
| 1½" 38 MM |
½" 12 MM |
¾" 19
MM |
|
>> The
Rockwell Drifter is Designed for Long Hole drilling in
underground mines, grouting hole for surface mining and
contruction applications as well as for drifting and
trnneling.
>> The Rockwell
Drifter features a 120 MM piston diameter and a powerful
impact and rotation
machanism.
>> It is used with
1¼" & 1½" rope thread extension drill steels
rods.
>> The rotation machanism
can also be disengaged & the impact action used to rattle
a tight joint or a jammed bit. |
| |
| |
 |
Telescopic Stopper
Air Leg Pusher,
Stopper &Telescopic Stopper
A rigid steel Pneumatic
jack for all drills.
Maintenance free ,single valve
operation.
Feed 36",52",331/2" & 1 mtr. Double feed
telescopic |
| FREATURES |
AIR LEG
PUSHER |
AIR LEG
STOPPER |
TELESCOPIC
STOPPER |
| Over All Weight |
22 Kg. |
20 Kg. |
25 Kg. |
| WORKING PRESSURE |
5-7 Kg./cm2 |
5-7 Kg./cm2 |
5-7 Kg./cm2 |
| AIR CONSUMPTION |
15 CFM |
10 CFM |
20 CFM |
| CYLINDER SIZE |
2½
(63.5 mm) |
2½
(63.5 mm) |
2¾
(70 mm)
3¼
(82.5 MM) |
| MACHINE FITMENT |
UNIVERSAL MACHINE MOUNT |
DIRECT MOUNTING |
DIRECT MOUNTING |
| DRILLING POSITION |
HORIZONTAL ANY ANGLE |
UP RIGHT VERTICAL |
VERTICAL IN LOW
HEIGHT |
|
| |
|
| |
|
 |
Swastik TCT Steel Grinder
Semi
Automatic
Grinder efficient for improving
drill steel
rod life &
drill machine speed |
| MAIN FEATURES |
| 1 |
OVER ALL WEIGHT |
80 KG |
| 2 |
OVER ALL DIMENSION |
29 " X 24" X 21" |
| 3 |
MOTOR SIZE |
1 HP 3 PHASE 440 VOLT 2800 RPM |
| 4 |
GRINDING WHEEL |
CUP TYPE 150 X 80 X 63.5 MM 39C54-3L5VK
B20 R25 Grindwell |
| 5 |
WATER CONNECTION |
1/2" BSP |
| 6 |
RADIUS |
80 MMR |
| 7 |
ANGLE |
110
DEGREE |
|
| |
 |
Turbo
Light RPP-1250
Magic Flood Light
For underground
mines,
Air operated portable power flash light
built to
be used without electricity.
12 Volts 50
Watts,Altenator,Halogen bulb,
Working at 70 psi & 30-40
cfm air consumption.
Range -6 mtrs. Max. |
| |
 |
Cement Injection
Pump
Main Application (Mines)
1. Roof Bolting &
Cable Grouting Fully Grouted Bolts & anchors installed by
pregrouting or post injection.
2.
Long hole grouting from 3m to 20m, can be injected with
cementitious or other mixer (Water based
resins etc.) in ratio from 1 : 0.00 up to 1 : 2.
3.
Ventilation control by spraying on to walls and prefabricated
meshes.
4. Injection of Grouts - set props with a
modification to produce high pressure setting up to
500 PSI. |
| SWASTIK INJECTION
PUMP SIP 100 |
The SIP 100 Pump ia An Air Operated Pump. It is
Suitable for Cement Injection, As an Pneumatically operated
unit, it can be installed at any Place, without any trouble
and it is fully safe to use.
It is basically designed
for Cement ggrouts & water based Binder. Where low volume,
but high pressure is wanted. The major attraction of SIP 100
is its portablity, due to light weight, yet it is rugged
enough to withstand the normal mines handling.
It also
produce a high pressure for sprating. This Pump Can be used in
Special Appplication Where time is of essence, also it is very
easy to maintain, Due to very few screws.
|
| |
| Special Features : |
1. Total
Weight...............................................22 Kg. |
| 2. Total
Height................................................44" |
| 3. Width &
Length...........................................24" x
8" |
| 4. Air Pressure
Required.................................90-100 CFM at 70-80
PSI Pressure. |
| 5. Total Head
Required...................................3M - 20 Metre |
| 6. Bottom Feed-No Hopper or suction pipe needed, No Air
Interference. |
| 7. Only one value Operation - for Complete & Perfect
Control. |
| 8. Allen Screwed Main Parts, Slurry Section can be opened
Quickly in case of any Blockage. |
| 9. All Major Parts are constructed of Stainless Steel
& Rust Proffed Electrically Galvanized Treated. |
| 10. Air Functioned Pump with all active parts fitted
inside only. |
| 11. A special grout mixer including 2no drums of 75 litres
capacity with mixing blades, air motor and torque multiplying
speed reduction gear box. |
| |
| Main Application
(Mines) |
1. Roof Bolting & Cable Grouting Fully
Grouted Bolts & anchors installed by pregrouting or post
injection.
2. Long hole grouting from 3m to 20m, can be
injected with cementitious or other mixer (Water based resins
etc.) in ratio from 1 : 0.00 up to 1 :
3. Ventilation control by spraying on to walls and
prefabricated meshes.
4. Injection of Grouts - set props
with a modification to produce high pressure setting up to 500
PSI. |
| |
| Civil Engineering &
Constructions |
1. Cavity injection - Particularly where ground is
sensitive, this pump gives a high degree of operator
control. |
| 2. Very low water / cement ratio mixes. |
| |
| Chemical & Technical
Industries |
1. Pumping any liquid or viscous material especially
in hazardous atmosphere. |
(Note : Illustration and
specification are not binding in detail and are subject to
modification and improvement without notice) |
|
| |
|
| |
|
 |

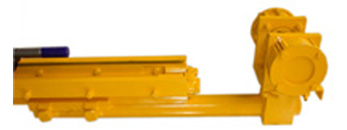

Long
Hole Drilling & Cable Bolting Machine |
| |
|
| |
|
 |
Spares
for Simba Junior
BBC -120 F
Drifter:
Piston,Rifle Bar,Guide Nut,Rifle
Nut,Rotation
Chuck,Pawl,Water Flushing Tube,Side Bolts,Nuts
etc.
BMS -46: Feed Motor Complete & Spares, Feed
Beam Complete, Guide Rails, Feed Screw, Cradle, Bearing
Casings, Ecentric Shaft,Fibre Piston Rings &
Gears
BSP -10: Complete & Spares |
 |
 |
| |
|
| |
|
 |

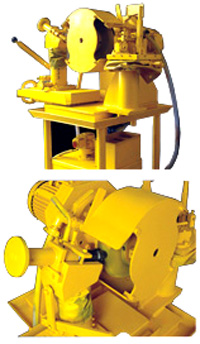

Rockwell Cross Bit
Grinder
| MODEL REC-32/57
ELECTRIC |
| MOTOR |
MAIN MOTOR 5 HP. 1440 RPM V,50 HZ, 3
PHASE, MAKE NGEF-FLANGE TYPE |
| WHEEL |
300 x 40 x 50
39 C 60 V SHAPE FOR 110
DEGREE |
| COOLANT |
WATER SPRAY FOR WHEEL &
DRESSER |
| SPINDLE |
MAIN SPINDLE FITTED WITH 2 STREIGHT
ROLLER BEARING & 2 BALL BEARING, FITTED WITH
HARDENED & GRINDED WHEEL FLANGE. |
| SAFETY
GUARD |
WHEEL GUARD - DUAL SIDE |
| STARTER |
DOL STARTER FOR MOTOR & ROTARY
SWITCH FOR COOLANT MOTOR. |
| CROSS
SLIDES |
MAIL CROSS SLIDE FOR BIT FORWARD
& REVERSE. SMALL SLIDE FOR CROSS BIT CENTERING &
SMALL SLIDE FOR DRESSER FORWARD &
REVERSE |
| COOLANT
TANK |
WATER CAPACITY 40 LTR. FITTED WITH
DUST SEPRATOR |
| BIT
HOLDER |
FOR R 32 ROPE THREAD-FOUR SIDE
CHANGER FOR GRINDING CROSS BIT |
| DIMENSION |
36" x 36" x 40" HEIGHT |
| WEIGHT |
TOTAL WEIGHT 300
KG |
|
| |
|
| |
|
 |
Shank
Adapter, Coupling Sleeve & Extension Rods
R 32,
R 38, T 38
Shank Adapter for Pneumatic Drifters &
Hydraulic Drifters |
| EXTENSION ROD R-32
(ROUND) |
| PART NO |
ROCK
ER-1200-R-32 (7853-3312-20 for reference only) |
| TOTAL LENGHT |
1.2 METER / 1200
MM |
| CENTRAL FLUSHING
HOLE |
9.5 MM |
| THREAD |
R-32 BOTH END
MALE THREAD & FLAT FOR SPANNER |
|
| COUPLING SLEEVE
(ROUND) |
| PART NO |
ROCK
R-32-CS (7993-3644-00 for reference only) |
| THREAD |
R-32, R-38 FEMALE
THREAD ON BOTH END |
| Adopter
Coupling |
| R-38 x
R-32, R-38 x T-38 |
|
| SHANK
ADOPTER |
| PART NO |
ROCK
SA-38-R32 (7803-4200-30 for reference only) |
| THREAD |
R-32 ONE
SIDE R-38, T-38 |
| CENTRAL FLUSHING
HOLE |
10.5 MM
THROUGH |
| SHANK & DOGS SUITABLE FOR 120 F DRIFTER,
BOOMERS |
|
| |
 |
Spares for LHD 912
B, Wagner 3 1/2 EST, LPDT
Spares:
Drive Lines,Spider Kits,Slip
Yokes.Shafts,
Transfer Case Gear,Crown & Pinion &
Spline
Plug Tube Assy., Clutch Gears ,Low Speed
&
High Speed Gears, Hydraulic Pump Gears &
Shafts
Wheel Stud, Planetry Gear & Housing, Ring Gear,
Sun Gear, Hugs, |
| |
 |
Spares for
Hopper Loader 150/1000, MK-II, Eimco 12 B, 21 D, 24, 824
Loader
Air Motor Spares
Piston, Connecting Rod, Piston Ring, Bushing.
Lower &
Upper Deck, Bucket Control Spares, Bucket Pins.
Remote
Control Spares, Axle & Hub, Bucket Chain, Spool Valve |
| |
 |
DTH Wagon
Drill BVB 25 Spares
Air Motor & Spares : Crank Shaft,Double
Piston,Cylinders & Main Valve.
Plantery Gearing
Complete & Spares.
Rotation System BBR -4
Spares.
Chain Feed System: BMK-35 K 157,Worm
Gear,Shaft,Chain
Tensioner,Sprocket.
COP-4 Hammer,All
Spares |
| |
 |
CAVO Auto Loader - 310
Spares
Air Motor & Spares : Cylinders
Rotors,Covers,Coupling half.
Traction Gear Box : Clutch
Gear,Pinion,Axle,hub & Modified Axle
Bucket OPerating
System : Chain Real Shaft,Motor Pinion Gears, Cable Long &
Short.
Air Control System : Spiral Bevel Gears,Shaft,Pinion
& Complete Control Panel |
| |
 |
Chisels For Rock
Breaker
Demo100, Demo 200, Krupp HM 960, HM720 |
| |
 |
Royal Pneumatic Power
Pack
Vane Type Air Motor,Radial Piston Pump with
filter
Air pressure 6 kg cm / bar / 80-90 CFM
Hydraulic
Pressure Developed -500 kg/cm/Bar
Capacity to Shift -200
ton Marble Block
Oil Capacity -25 lt. ,Flow -1.5
LPM
Weight in Dry Condition
-65kg |
| |
|
| |
|
 |
Jack
Hammer Spares
For CPT -32 F, Atlas Copco 658 -5L/4W |
| |
|
| |
|
 |
Alimake Raise
Climber
Air Motor Complete & Spares : Double
Piston ,Cylinders
Pinion, Worms Gears
& Shafts.
Guide Rollers & Safety Device
Spares. |
| |
|
