THERMAL ENERGY STORAGE At a time when we talk more and more about
the environment
and
rationalization of energy use,THERMAL ENERGY STORAGErepresents a technical solution adapted to
industrial cooling and air conditioning
systems
THERMAL ENERGY
STORAGE for Air Conditioning &
Industrial Refrigeration
CRISTOPIA Thermal Energy Storage: Explanations
Nodule
Tank (made to measure according to site
requirement)
Various Type of Tanks -
Vertical Tank

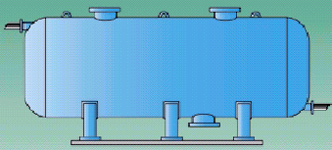

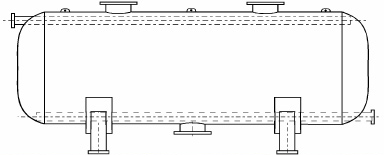

Horizontal Tank

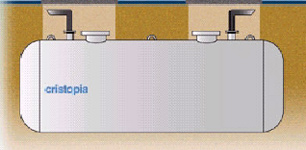

Buried Tank
Concrete Tank
CRISTOPIA SYSTEM

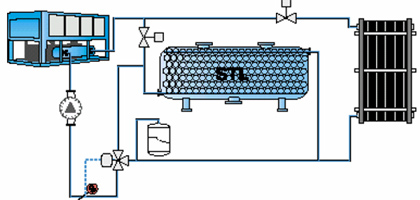

The STL is composed of a tank(s) filled with nodules
(balls) and heat transfer fluid. Approximately 60%
of the volume of the tank is occupied by the
nodules and the remaining 40% is fluid. The heat
transfer fluid is usually mono-ethylene glycol.

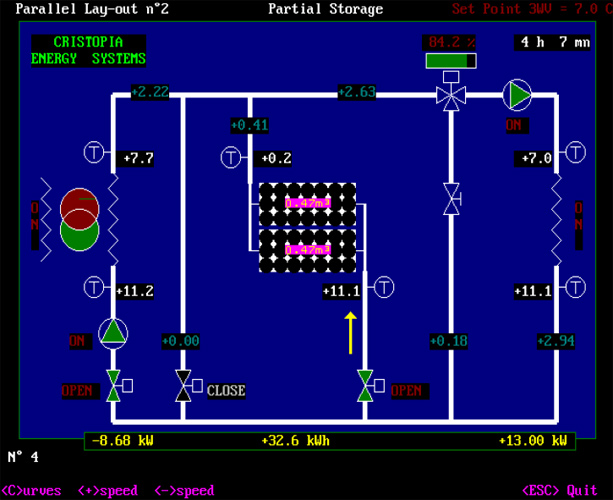

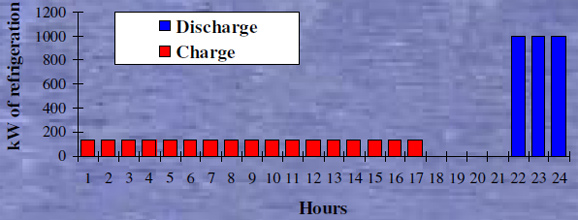

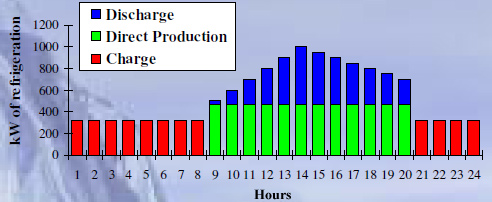

DISCHARGE MODE Partial Storage
STORAGE STRATEGIIES
Partiiall Storage
: Selecting
installation for
optimum
combination of
chiller + storage

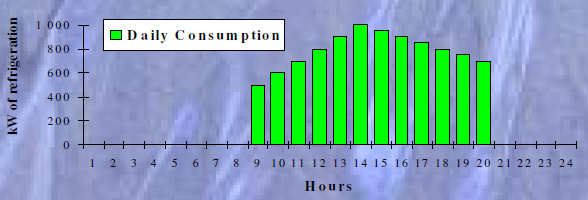

TRADITIONAL SOLUTION
STL SOLUTION
Time Of the Day
with partial
storagekeeping
chiller off during
peak tariff periods

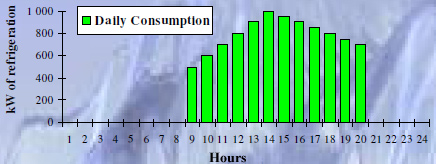

TRADITIONAL SOLUTION
STL SOLUTION

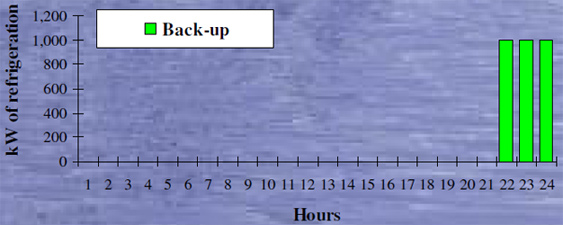

Backup: Selection to
provide back up
against power
failure or back
up for small
loads when main
loads are off.
