FAG shaft alignment device
Top-Laser INLINE

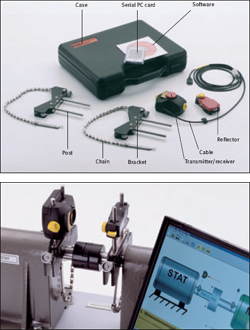

The FAG Top-Laser INLINE is a PC-based alignment system for coupled shafts in motors, pumps, ventilators and gearboxes (with rolling bearings).

Advantages:

• Simple to use
• Error-free handling even by untrained personnel due to automatic measurement and positioning process
• More precise alignment than with conventional methods
• Rapid measurement due to continuous rotary motion
• Reduced vibration and friction losses
• Longer machine running times
• Usable with conventional laptops
• Suitable for use in combination with Bearing Analyzer

Actions before alignment

Before any alignment operation, any tilting foot (machine foot that lifts off the floor when slackened) should be removed in order to prevent increased vibration tendency and bearing damage due to housing distortion.

The Top-Laser INLINE helps to quickly identify and eliminate the so-called soft foot. It is only necessary to loosen each individual screw foot connection. The computer determines any foot movement. The tilt foot can then be eliminated using shims.
