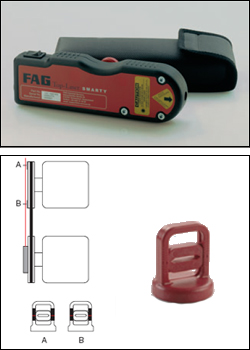

Top-Laser SMARTY is an economical measuring device for the alignment of belt pulleys and chain sprockets. Through the use of this device, the wear of belt drives, bearings and seals is reduced. Less vibration is generated and the running time and reliability of the machinery are increased.

Features and advantages:

• Displays parallelism and misalignment of both pulleys
• Significantly quicker and more precise than conventional methods
• Suitable for both horizontally and vertically mounted machinery
• Only one person required for alignment
• Also suitable for non-magnetic sprockets or pulleys

The measuring device can be mounted in just a few seconds. The laser beam can be clearly seen on the target marks. When the laser beam coincides with the slits in the target marks as a result of adjustment, the machine is correctly aligned.

Due to the low mass of the measuring device, the transmitter and target marks can be fixed to non-magnetic drive pulleys using a strong, double-sided adhesive strip.
