Other Hoses ........

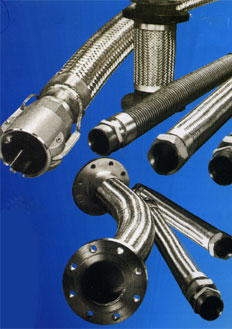

FLEXIBLE STAINLESS
STEEL HOSE & ASSEMBLIES
INTRODUCTION
Flexible Stainless Steel hose and assemblies are engineered to perfection
in flexibility, strength and reliability. A full range of metallic
flexible hoses are manufactured in SSAISI 304,321,316 & 316-1
confirming to international quality standards. A corrugated flexible
metal hose is a tubing made flexible by forming convolutions so
that it may conveniently bend while remaining liquid and gas tight.
Their specially drawn thin wall tubing can hold to a micrometer
tolerance throughout the entire length. These are available in sizes
from 1/4" to 8" I.D., in single lengths of 15meters up
to 4"I.D. and 7.5meter up to 8"I.D.These are used at temperature
from -260°to +800°C. They are pressure and vaccum tight
with operating pressure in the range of 8 to 100 kg/cm2.
APPLICATION
Flexible Stainless Steel Hose and Assemblies are used in Fertilizer
Units, Chemical Plants, Oil Refineries, Paper Mills, Tyre Plants,
Power Stations, Textile Plants, Air Conditioning Lines, Refrigeration
Lines, Steam Conveying lines, Gas filling, Cryogenic Service, Steel
Plants, Aluminium Industries, Boilers, Sugar Plants, Cement Plants,
Diesel Engine Exhausts, Fuel Filling Guns etc.
BRAID
The stainless steel flexible hose is covered with an external braiding
made from stainless steel wire. The wire braiding can be either
single or double layer according to pressure rating required. Braiding
increases the hoop strength, stabilizes movement and offers a form
of protection to the inner corrugated tubing.
The braids are made from high tensile stainless steel wires of different
gauges in AISI 304 steel. Stainless steel corrugated hose assemblies
are supplied in single/double braiding but can be supplied without
braid also for low pressure and vacuum applications.
ADDITIONAL PROTECTIVE COVERING
Hose assemblies can be supplied with additional covering such as
asbestos cord or cloth strip wound on hose etc.
ADVANTAGES OF FLEXIBLE METAL HOSE
* Suitable for wide temperature range (-260°C to +800°C).
* It compensates for thermal expansion or contraction in piping
system.
* High physical strength.
* Good corrosion characteristics.
* Fire resistant.
* Moisture resistant.
* Long life.
* Resistant to abrasion, penetration and damage.
* Absorbs or dampens vibration and noise from pumps, compressors,
engines and similar equipment.
* Connects nonaligned rigid piping.
* Connects moving parts of machinery and equipment.
* Permits a very economical installation against rigid piping in
difficult locations.
|
| |
|
| Realflex Medium Duty
PVC Hose (Green) |
|
|
|
Realflex Medium Duty PVC Hose is the real hose for suction and delivery
application. It is strong, flexible, durable and easy to handle. It
is a smooth bore reinforced PVC Hbse which ensures optimum performance
and minimum flow resistence to the product is conveys. Realflex flexible
PVC Hose with rigid reinforcement for suction and delivery is a result
of many years of experience combined with advance technology, perfect
quality control before and throughout the production gives the ultimate
users maximum quality assurance.
|
Realflex Oil Hose
(Blue) |
|
|
|
Oil resistance Realflex Oil Hoses are specially flexible.This hose
is ideal for transportation of mineral oils, light oils, transformer
oils,Kerosene ,liquid petrolieum products etc.
|
|
|
|
|
|
|
 |
Duct
Hoses consist of a helically wound reinforcing rigid PVC spiral
embedded in and inseparably fused to a flexible PVC wall. Specially
formulated PVC compounds render this uniquely designed hose highly
flexible, light in weight and resistant to crushing.
Application : Designed for air ducting , Dust collection and fume
extraction Heating, cooling and Ventilation Conducting ,Vacuum systems
Hair dryers Hospital oxygen supplies Wood working machines, Cable
protection Industrial and domestic vacuum cleaning equipment Conveying
of chemicals in industries and in other industries for various applications.
Size : These hoses are available in sizes ranging from inside diameter
5 mm to 50 mm.
|
| |
|
|
|
