Technical specifications of 1.1 KV Annealed High Conductor, Solid Copper Conductor 1.5 sq. mm. , PVC Insulated, Inner Sheathed Armoured / Unarmoured PVC Sheathed Cables 1.1 KV Grade conforming to IS: 1554 (PART I)

			ARMOURED				Approx. Overall Diameter		Approx. Weight of cables			CURRENT RATINGS
No. of cores	Nominal thick-ness of insula-tion	Mini-mum thick-ness of Inner Sheath	Galvan. Round Steel Wire Nominal Dia.	Galvan. Flat Steel Wire Nominal Thick-ness	Nominal Sheath Thick-ness Unarm- oured	Mini-mum Sheath Thick-ness Armou-red	Unarm oured	Armou-red	Unarm oured	Armou-red	Max. DC Conduc-tor Resis-tance at 20^o C	Direct in ground	In Ducts	In Air
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Ohm/Km	Amps	Amps	Amps
2	0.8	0.3	1.4	-	1.80	1.24	11.5	14.0	124	333	12.1	23	20	20
3	0.8	0.3	1.4	-	1.80	1.24	12.0	14.5	152	380	12.1	21	17	17
4	0.8	0.3	1.4	-	1.80	1.24	13.0	15.0	181	428	12.1	21	17	17
5	0.8	0.3	1.4	-	1.80	1.24	14.0	16.0	214	475	12.1	21	17	17
6	0.8	0.3	1.4	-	1.80	1.24	15.0	17.0	238	523	12.1	15	13	13
7	0.8	0.3	1.4	-	1.80	1.24	15.0	17.0	252	537	12.1	14	13	13
10	0.8	0.3	1.4	-	1.80	1.40	18.0	20.5	333	713	12.1	13	11	11
12	0.8	0.3	-	0.8	1.80	1.24	18.5	19.5	380	618	12.1	12	10	10
14	0.8	0.3	-	0.8	1.80	1.40	19.5	20.5	428	722	12.1	11	10	10
16	0.8	0.3	-	0.8	1.80	1.40	20.5	21.5	475	760	12.1	11	9	9
19	0.8	0.3	-	0.8	2.00	1.40	22.0	22.5	570	808	12.1	10	9	9
24	0.8	0.3	-	0.8	2.00	1.40	25.0	25.5	689	998	12.1	9	8	8
30	0.8	0.3	-	0.8	2.00	1.40	26.5	27.5	817	1140	12.1	9	7	7
37	0.8	0.3	-	0.8	2.00	1.40	28.0	28.5	998	1330	12.1	8	7	7
61	0.8	0.4	-	0.8	2.20	1.56	35.0	36.5	1568	1995	12.1	7	6	6

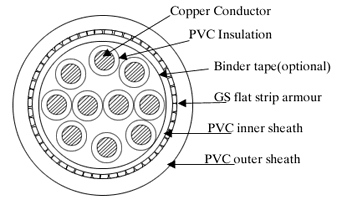

Solid Copper Conductor,
PVC Insulated, Armoured,
PVC Sheathed Cable
Type: YFY
