Technical specifications of 1.1 KV Annealed High Conductor, Solid Copper Conductor 2.5 sq. mm. ,
PVC Insulated, Inner Sheathed, Armoured / Unarmoured PVC Sheathed Cables 1.1 KV Grade conforming to
IS: 1554 (PART I)

			ARMOURED				Approx. Overall Diameter		Approx. Weight of cables			CURRENT RATINGS
No. of cores	Nominal thick-ness of insula-tion	Mini-mum thick-ness of Inner Sheath	Galvan. Round Steel Wire Nominal Dia.	Galvan. Flat Steel Wire Nominal Thick-ness	Nominal Sheath Thick-ness Unarm-oured	Mini-mum Sheath Thick-ness Armou-red	Unarm-oured	Armou-red	Unarm-oured	Armou-red	Max. DC Conduc-tor Resist-ance at 20^o C	Direct in ground	In Ducts	In Air
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Ohm/Km	Amps	Amps	Amps
2	0.9	0.3	1.4	-	1.80	1.24	13.0	15.0	152	404	7.41	23	20	20
3	0.9	0.3	1.4	-	1.80	1.24	14.0	16.0	214	451	7.41	21	17	17
4	0.9	0.3	1.4	-	1.80	1.24	14.50	17.0	238	504	7.41	21	17	17
5	0.9	0.3	1.4	-	1.80	1.24	15.50	18.0	285	570	7.41	21	17	17
6	0.9	0.3	1.4	-	1.80	1.24	17.0	19.0	323	641	7.41	15	13	13
7	0.9	0.3	1.4	-	1.80	1.24	17.0	19.0	356	665	7.41	14	13	13
10	0.9	0.3	1.4	-	1.80	1.40	20.5	22.0	475	741	7.41	13	11	11
12	0.9	0.3	-	0.8	1.80	1.40	21.0	22.5	570	808	7.41	12	10	10
14	0.9	0.3	-	0.8	2.00	1.40	22.5	23.5	618	903	7.41	11	10	10
16	0.9	0.3	-	0.8	2.00	1.40	23.5	24.5	713	998	7.41	11	9	9
19	0.9	0.3	-	0.8	2.00	1.40	24.5	25.5	808	1093	7.41	10	9	9
24	0.9	0.3	-	0.8	2.00	1.40	28.5	29.5	998	1330	7.41	9	8	8
30	0.9	0.3	-	0.8	2.00	1.56	30.5	31.0	1188	1615	7.41	9	7	7
37	0.9	0.4	-	0.8	2.20	1.56	32.5	33.5	1473	1900	7.41	8	7	7
61	0.9	0.4	-	0.8	2.20	1.56	40.5	41.5	2328	2945	7.41	7	6	6

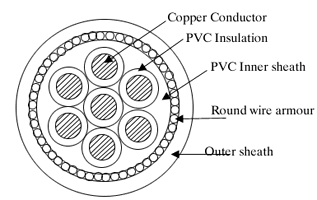

Solid Copper Conductor,
PVC Insulated, Armoured,
PVC Sheathed Cable

Type: YWY
