| Project 3 |
| LPG Cylander Manufacturing & Filling Plant |
| LPG CYLINDER MANUFACTURING PLANT - PROJECT PROFILE |
| |
FROM CONCEPT TO COMMISSIONING
Resweld Automation Pvt. Ltd. is a diversified Indian company and company's business interests include a host of manufacturing Resistance Welding equipment, other machineries for Industrial Packaging (metal), special purpose & tailor made equipment for other engineering industry and Technology Services etc. Resweld is in a position to provide the entire Engineering Services, Know-How and Designer Supervision for the facility.
The unique feature of the of the company is their experienced Project team, capable to provide detailed insight into manufacturing technologies and operational techniques developed through long years of direct manufacturing experience. In the recent years our project team had set-up LPG Cylinder plants for valued foreign Government client to meet their specific requirements. |
| |
 |
 |
SAW Machine for Circumferential Welding |
Painted Cylinders for drying |
| |
 |
| |

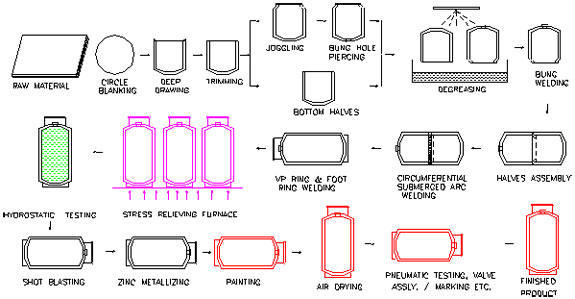

The major plant & facilities required for LPG Cylinder manufacturing are :
- Shearing / Cutting Equipment for Sheet
- Drawing Press
- Special Purpose Trimming/Joggling Machine
- Degreasing System
- Submerged Arc Welding Machine
- MIG / CO2 Welding Machine
- Heat Treatment Furnace
- Shot Blasting Machine
- Zinc Metallizing Equipment
- Painting System
- Paint Drying System
- Leak Testing Machine
- Special Purpose Assembly, Welding & Inspection Fixtures
|
| |
The plant facilities require to be supported by an infrastructure primarily comprising of the following :
- Utility System (Electricals, Compressed Air & Cooling Water)
- Quality Assuarance Laboratory
- Material Handling System
|
| |
| Reweld is also a member of IiW (The Indian Institute of Welding), a reputed association of Welding System & equipment . |
| |
| |
| TYPICAL MODULAR CAPACITY PLANT |
| |
| The broad parameters for modular plant are as below : |
Capacity |
350 Cylinders/ Shift |
Power Required |
650 KVA |
Land Area |
12,000 Sq.M |
Manpower (Workmen-direct / indirect) |
125 nos. |
Plant Building |
2,100 Sq.M |
|
|
|
| |
| Note : The above parameters are indicative only and are meant for preliminary assessment. We will be pleased to work with our esteemed clients to evolve the most suitable plant configuration. For future details, please call us. |
| |
| |
| LPG FILLING / HANDLING PLANT - PROJECT PROFILE |
| |
| FROM CONCEPT TO COMMISSIONING
Resweld Group of Company is a diversified Indian Technology group whose business interests include a host of manufacturing Resistance Welding equipment, other special purpose & tailor made equipment for other engineering industry and Technology Services etc. Resweld is in a position to provide the entire Engineering Services, Know-How and Designer Supervision for the facility.
The unique feature of the of the company is their experienced Project team, who has rich experience in setting up of LPG Filling plants for various cliets right from concept to commissioning. |
| |
 |
 |
LPG Filling Line |
LPG Bullet Structure |
| |
|
| SIMPLIFIED FLOW DIAGRAM |
 |
| |
The major plant & facilities required for LPG Cylinder manufacturing are :
- LPG Storage Bullets / Spheres
- LPG Unloading compressor
- LPG Transfer Pumps
- LPG Filling Machine / Carousels with conveyor
- Over filled / defective Cylinders decanting System
- Fire fighting Hydrant and Monitoring System
- Instrumentation and Controls
- Utility System (Electricals, Compressed Air etc.)
|
| |
| TYPICAL MODULAR CAPACITY PLANT |
| |
| The broad parameters for modular plant are as below : |
Capacity |
5000 Tonnes/annum |
Power Required |
150 KVA |
Land Area |
2,5000 Sq.M |
Manpower (Workmen-direct / indirect) |
10 nos. |
Plant Building |
2,000 Sq.M |
Order of Magnitude for Capital Investment |
|
|
| |
| Note : The above parameters are indicative only and are meant for preliminary assessment. We will be pleased to work with our esteemed clients to evolve the most suitable plant configuration. For future details, please call us |
| |
| |
