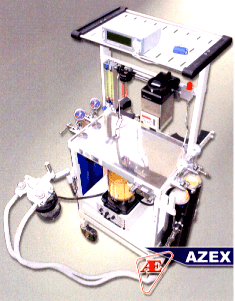

Anaesthesia Equipment: Model 3
SPECIFICATIONS of MODEL 3
Construction:
Tubular, rigid, electrostatically powder coated steel sections, (LANDMARK -S has stainless steel
Table Top:
Stainless Steel (597 mm x 360 mm).
Mobility:
Four large diameter anti-static castor wheels with ball bearings.
Front castors have breakes actuated by horizontal bar doubling as foot rest.
Cylinder Yokes:
Gas specific (pin-indexed) yokes with sliding stainless steel clamping bars for easy handling.
Two each for oxygen and nitrous oxide (5 litre water capacity) (Cylinders to be ordered separately)
Pressure Gauges:
Large diameter (63 mm) - two each for oxygen and nitrous oxide, fitted at convenient angle for high visibility and clarity.
Regulators:
Designed for higher efficiency and reliability; two each for oxygen and nitrous oxide.
Nitrous oxide regulators are pressurised to minimise the risk of administering 100% nitrous oxide.
Rotameter:
Long (230 mm) rotating bobbing flowmeters calibrated in double/triple scale for accuracy and clarity in reading.
Oxygen: 100 ml/min to 8 liters/min. Nitrous oxide: 200 ml/min to 12 liters/min.
Oxygen Failure Warning Device:
Pneumatic device which activates audible (Oxygen failure alarm for a minimum of 7 seconds) when warning device) oxygen suply pressure fails to 205 kpa.
Vaporizers
One plenum Type vaporizer for Ether supplied as standard. Space for one or more vaporizers of choice.
Non-return cum pressure relief valve:
Minimises risk of backflow of gases; blows off cum pressure when pressure exceeds 200 cm of water relief value column
Breathing attachment
Standard magill's circuit with changeover unit (open circuit to closed circuit and vice versa). Emergency oxygen outlet at table level.

Accessories

Rigid top tray for monitors;load capacity 22 kg.
Two built-in self sealing Scharder type oxygen outlets (4.22 kg/cm2) for driving ventilators, etc.
Space for ventilator (Ventilator at extra cost).
Mediline Circle Absorber (optional) can be securely mounted on the left side of the main frame.
Extended rear platform for two 10 litre water capacity cylinders.

Dimensions
Height: 156 cm Depth: 55 cm With: 61 cm
Weight (unpacked)
70 Kg.
Specifications are subject to change without notice due to policy of continuous improvement.
