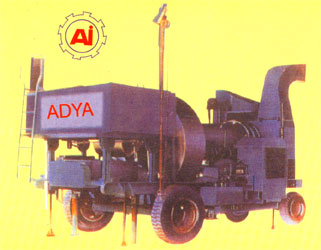

“ADYA” Mini Hot Mix Plant 6 to 10 TPH capacity, powered by KIRLOSKAR RB-33, 38 HP or suitable Water Cooled Diesel Engine of self starting system, with separate arrangement for Drying / Cleaning, Heating and Mixing as per specification, complete with all fittings and accessories, mounted on a strong steel chassis with 4 Nos. Pneumatic wheel.

Technical Data

• Overall Length – 6600mm
• Overall Width – 3800mm
• Overall height with chimney – 3500mm
• Diameter of Dyer Drum – 750mm
• Length of Dyer Drum – 2250mm
• Size of aggregate to be used – up to 25mm (Normal) / up to 45mm (By changing Pugmill Blades)
• Prime Mover – Kirloskar RB-33, 38 HP Water Cooled Diesel Engine
• Tyres – Front: 750 x 16, Rear: 900 x 20 / 825 x 20
• Bitumen Boiler – May be provided at an extra cost
