“ADYA”

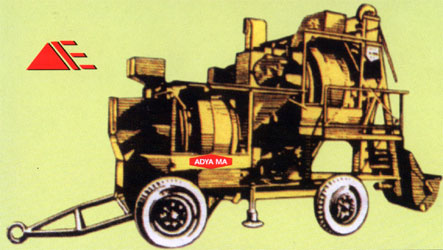

Mini Hot Mix Plant 6 to 10 TPH capacity, powered
by KIRLOSKAR or other suitable Diesel Engine,
water cooled diesel engine of self starting system,
with separate arrangement for Drying, Heating
and Mixing as per specification, complete with
all fittings and accessories, mounted on a strong
steel chassis with 4 nos. pneumatic wheels and
4 nos. mechanical jacks.
Technical Data
- Overall Length with Ladder &
Hopper – 18ft
- Overall Width w/o Ladder &
Hopper – 12ft
- Overall Width with Wheels –
9.03ft
- Overall Width w/o Wheels –
7ft
- Weight – 7 tons (approx.)
- Size of aggregate to be used
– up to 45mm
- Prime Mover – Kirloskar
RB-3,28 HP Water Cooled Diesel Engine
- Tyres – Front: 8
x 25 x 20, Rear: 8 x 25 x 20
|
