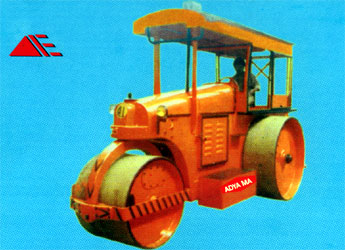

General Description –
8 to 10 tons (approx.) Capacity + 5%
Weight – The basic weight of Roller is 8 ton
(approx.) Sand ballasted up to 10 ton (approx.)
Dimensions
- Length – 4825mm (190”)
- Wheel Base – 2745mm (108”)
- Rolling Width – 1675mm
(66”)
- Overlap between Front & Rear
Rolls – 90mm (3½”)
- Turning Radius (inner) –
1540mm (58”)
- Diameter of Rear Rolls –
1370mm (54”)
- Diameter of Front Rolls –
1030mm (41”)
- Width of Rear Rolls – 535mm
(21”)
- Width of Front Rolls –
968mm (38”)
- Height with Canopy – 2875mm
(114”)
- Thickness of Rolling Plate
– 38mm (1.52”)
Steering –
The Steering wheel is arranged for operations
from the sitting or standard position. Worm and
Wheel reducing Gear Steering system is installed.
Rolling Pressure
Rear Rolls – 161.025
Kg (For 8 ton Basic Roller) 199.580 Kg (For 10
ton Basic Roller)
Power – The
power is derived from Perkins P-4 Industrial 39.5
BHP at 1800 RPM Diesel Engine with 12V Electric
starting equipment
Clutch – The
Clutch is single plate dry type mechanically foot
operated. 4 Forward and 1 Reverse gear. Built
in reversing Clutch is provided, controlled by
hand lever double acting quick release type.
Speed for
4 Forward & 1 Reverse Gear Box
- 1st Gear – 2.60 kmph
- 2nd Gear – 3.85 kmph
- 3rd Gear – 6.00 kmph
- 4th Gear – 8.30 kmph
- Reverse – 2.80 kmph
Brake – Foot
operated instant Brake installed and located near
the Rear Rolls. The operation is effective through
Brake Drums having expanding shoes. Parking Brake
provided.
Light – Two
front & one back
Fuel Tank – The
capacity of the fuel tank is 65 liters. The volume
of the Tank can be increased slightly, if required.
Towing Arrangement is provided
at end Portion Tool Box – A Tool Box for
keeping Tools is provided.
|
