| OUR PRODUCTS : |
- Servo control Voltage stabilizer
- Uninterupted power supply (UPS, true on line)
- APFC : Automatic power factor controller
- Spares for all types of Indian servo Stabilizers.
- Power Guard / RLC passive Filters.
- Active Harmonic Filters
- Passive Harmonic Filters
- Isolation / Ultra Isolation Transformers
- Various type of AC synchronous motors: 3, 7.5, 10, 20 kg-cm
- All types of Industrial Variac / Auto transformer
|
| |
|
| |
| |
1. Servo control Voltage stabilizer :
|
Servo control voltage stabilizer and IGBT based Solid state stabilizer is a 3-Phase, Distortion-free, DG set compatible automatic voltage, Noise, Harmonic controller. These will gives perfectly stable output even under severe condition of unbalance input voltage and reduce the frequent breakdowns of your sophisticated hi-tech machine, like CNC, Computers, Textile, Printing, and Medical Equipments. Various types of Stabilizers are as follows:- |
- Variac Based servo stabilizer
- Variac Based power conditioner
- IGBT Based power conditioner
- Variac Based super power conditioner
- IGBT Based super power conditioner
|
| |
|
| |
| This Shows the type of voltage the equipment received BEFORE power conditioner connection. |
This Shows the type of voltage the equipment received AFTER Simex improved the Scence. |
|
|
|
| |
| |
Salient Features :-
1. Voltage stabilizer & power conditioners using VARAC/IGBT/THYRISTORS
2. Speed of voltage correction from 750V/Sec to 125V/Sec depending on Technology.
3. Power Rating from 500VA to 1000KVA
4. Response time <8 millisecond to 1 millisecond depending on technology.
5. Efficiency better then 98%
6. Input supply frequency 47 to 53Hz
7. Wave from distortion: NIL
8. Effect of load power factor: NIL
9. Power conditioner Attenuate EFTs & Surges up to 20kHZ
10. Protections: Input over voltage, output under / over voltage, over load, short circuit, SPP, Input Neutral Grounding unhealthy.
11. Input voltmeter, output voltmeter & Ammeter. |
| |
| Go to top |
| |
|
| 2. Uninterupted power supply (UPS, true on line) |
Uninterrupted Power Supply (UPS) Provide ultimate protection for all critical applications like Communication Systems, Servers, Net working systems, CNC machines, Medical Equipments...etc. The UPS is designed to support sophisticated equipments with high crest factor demand and provides unmatched performance.
|
| |
| |
Tech. Specification :
Input Voltage: 230VAC [+20% to -30%] for single phase
Input Voltage: 400VAC [+15% to -30%] for three phase
Output voltage regulation: 230VAC 1% in single
400VAC 1% 3phase
Frequency Stability: 50Hz ± 0.01°/o
Over load handling: 120°/o for 10 min and
150% for 60 seconds
Efficiency: DC to AC [inverter] >90%
|
Frequency. 50Hz [± 6%] phase
Wave form; True Sine Wave
Power factor: 0.8PF
AC to AC [overall] > 80%
Rating available: 1 - 100Kva |
| |
| |
Protections:
Input MCB, Battery MCB, Output fuse, Mains under / over voltage, Battery 'charging current limit, Battery under voltage, Output overload, Output short Circuit, Output under/ over voltage. Other rating will also be available on request.
Special Features:
Mains on. Inverter on, Load on mains, Load on UPS, Mains fail, Battery, Low, Trip. |
| |
| |
| Go to top |
| |
|
| 3. APFC : Automatic power factor controller : |
| |
- Contactor Based power factor controller
- Tyristor Based power factor controller
- APFC with de-tuned inductor
- Real time Power factor Controller
- Total solide State P.F. controller
|
| |
REAL TIME POWER FACTOR CONTROLLER / AUTOMATIC POWER FACTOR CONTROLLER |
|
| WE HAVE DEVELOPED A NEW TECHNOLOGY WITH IN HOUSE EFFORTS CALLED SWITCHING OF CAPACITORS AT "ZERO CURRENT CROSSOVER THRESHOLD" THROUGH SOLID STATE DEVICES LIKE HYRISTORS & IGBTs. |
| |
| Special Features: |
|
- very fast response time which can be as small as 20 m.sec.
- Very smooth connection of capacitors to the mains hence no generation of voltage spikesr deterioration in the KVR ratings of capacitors.
- The systems can be designed to work under high harmonics conditions by DE-TUNING LC SERIES CIRCUIT.
- No amplification of existing current or voltage harmonics.
- A switching system can be designed to work as harmonic filter and P.F. correction simultaneously.
- Low maintenance cost.
|
| |
| |
| |
| Go to top |
| |
4.Spares for all types of Indian servo Stabilizers.

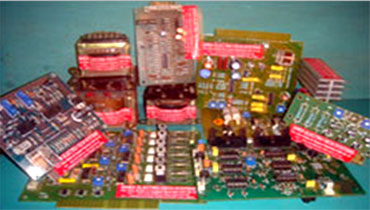

We have the stock for the following items , like Voltage Regulator PCB, Under/Over Volt PCB,Three phase cut off PCB, Single phase Preventor, Ac Motor Voltage control PCB, MIMIC PCB. RANSEL PCB, TRIP CARD, CONTORL TRANSFORMER, SENSING TRANSFORMER, VARIAC, PCB CONNECTOR, deferent type of variac gear & coupling, servo motor etc. |
| |
|
| |
|
| |
|
|
| |
|
| |
