POWER CAB & PCI Cable is a new venture in the cable industry.

The manufacturing unit is situated at Calcutta, West Bengal. The cables are being manufactured under the brand Name "POWER CAB & PCI CABLES" strictly as per relevant IS specifications. The plant is equipped with sophisticated modern automatic machinery.

At the initial phase the following range of products are being manufactured: - PVC1.1KV Aluminium & Copper Power and Control Cables both armoured & Unarmoured upto 150 sq. mm. both Copper & Aluminium House wiring and other sophisticatd cables strictly as per ISS.

Our Product Range:

  • 1.1 KV LT XLPE Cable as per IS: 7098 (Part-I)
  • Ariel Bunched Cable LT XLPE confirming to IS: 14255
  • 1.1 KV PVC HR Power Cables confirming to IS:1554 (Part-I)
  • 1.1 KV PVC & HR/FRLS Copper Control Cables upto 37 Core Confirming to IS: 1554 (Part-I)
  • ACSR, AAAC, AAC Conductor (398 Part-II, 398 Part-IV & 398 Part-I)
  • Domestic wiring cable 660/1100 volt as per IS: 694.




  Infrastructure >>

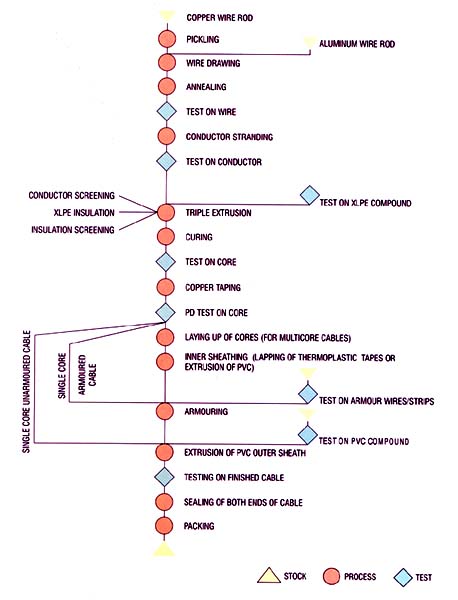

Flow chart for manufacturing process & Quality Control Checks for XLPE cables
conforming to IS : 7098 (Part - II) 85

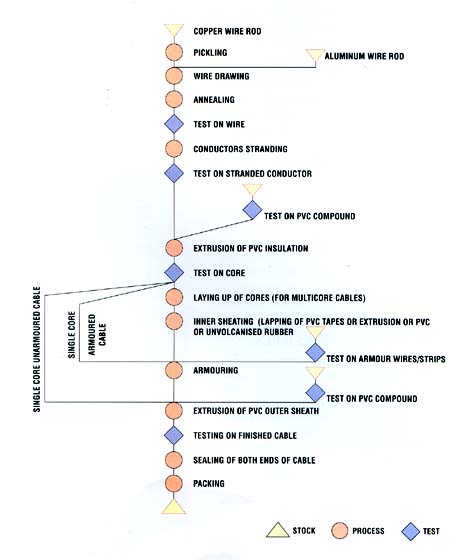

Flow Chart for Manufacturing Process & Quality Control Checks for Cables to IS-1554 (Part - I)

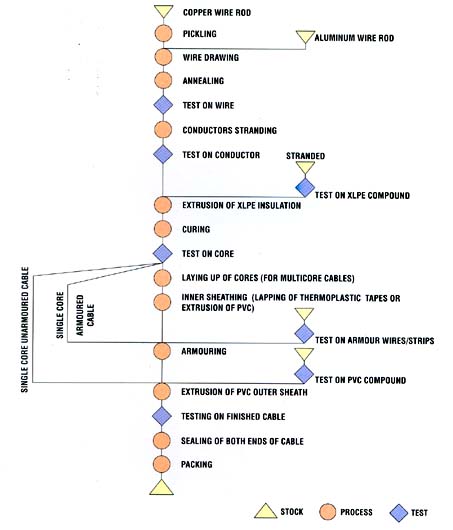

Flow Chart for Manufacturing Processes & Quality Control Checks for Cables COnforming to IS:7098 (Part -1)
Go to top ..
  Price List >>
PVC Armoured (AYFY) and Unarmoured (AYY) Power Cables with
Aluminium Conductor 1100 V Conforming to IS : 1554 (Part - I)/1988

- AYFY (Armoured) AYY (Unarmoured)
Conductor
Cross
Section
in sq. mm		 1 Core Rate 2 Core Rate 3 Core
Rate		 3.5 Core Rate 4 Core
Rate		 1 Core Rate 2 Core
Rate		 3 Core
Rate		 3.5 Core Rate 4 Core
Rate
4 - 57.00 64.00 - 71.30 - 34.30 39.40 - 47.00
6 - 65.10 74.70 - 84.60 - 41.50 48.70 - 58.60
10 - 78.00 93.70 - 98.20 - 52.60 62.50 - 74.40
16 50.30 93.60 111.30 - 134.40 27.50 70.80 93.40 - 109.00
25 63.50 102.90 126.80 151.10 154.10 35.40 79.60 109.80 127.50 137.60
35 75.10 122.20 153.90 179.40 193.30 44.00 97.40 134.20 154.20 172.40
50 90.60 153.70 202.40 234.40 250.40 56.50 125.60 174.40 203.40 228.70
70 114.50 199.70 258.90 296.70 336.70 74.00 167.10 233.20 272.30 308.40
95 133.40 258.40 335.20 384.30 443.20 98.50 232.80 302.20 359.70 414.30
120 154.80 319.30 404.90 470.70 536.40 120.00 279.60 373.90 438.50 492.70
150 183.50 372.40 488.60 555.70 642.20 145.40 341.10 447.50 516.20 601.90
185 218.80 485.40 593.70 711.50 793.50 176.90 414.80 557.00 649.20 752.10
240 272.90 599.60 769.90 888.10 1014.60 226.10 518.70 740.30 846.70 966.10
300 333.90 697.00 936.50 1104.70 1240.50 275.80 629.10 890.50 1038.30 1199.10
400 410.60 862.10 1170.70 1390.30 1591.70 350.40 804.10 1132.90 1220.00 1508.90
500 514.90 1079.70 1522.00 1737.10 1968.90 445.80 1033.60 1410.80 1683.90 1892.00
630 671.60 1475.80 1915.70 2194.70 2525.80 575.30 1310.20 1905.10 2140.40 2434.90
800 810.00 - - - - 714.20 - - - -
1000 1007.90 - - - - 876.30 - - - -

PVC Armoured (YFY) and Unarmoured (YY) Power Cables with
Copper Conductor 1100 V Conforming to IS : 1554 (Part - I)/1988

- YFY (Armoured) YY (Unarmoured)
No. of cores 1.5
sq.mm		 2.5
sq.mm		 4
sq.mm		 6
sq.mm		 10
sq.mm		 16
sq.mm		 1.5
sq.mm		 2.5
sq.mm		 4
sq.mm		 6
sq.mm		 10
sq.mm		 16
sq.mm
2 57.30 72.80 92.80 114.50 164.50 212.50 34.10 46.60 64.00 84.30 129.80 183.90
3 65.60 85.80 112.20 141.90 213.20 259.70 41.60 58.90 82.70 110.90 173.30 239.30
4 77.00 100.40 134.80 173.80 251.00 333.90 51.00 72.50 103.60 140.10 221.90 309.20
5 88.40 118.00 - - - - 61.90 89.70 - - - -
6 100.40 136.20 - - - - 72.50 105.30 - - - -
7 105.90 144.90 - - - - 78.10 114.40 - - - -
8 118.60 167.30 - - - - 89.20 131.30 - - - -
9 132.00 174.00 - - - - 100.30 148.60 - - - -
10 143.40 185.20 - - - - 106.60 158.40 - - - -
12 145.50 211.10 - - - - 123.20 187.10 - - - -
14 166.00 238.30 - - - - 139.70 213.40 - - - -
16 184.70 266.30 - - - - 157.10 241.00 - - - -
19 209.20 304.30 - - - - 184.70 279.10 - - - -
24 257.30 376.60 - - - - 229.40 347.60 - - - -
27 280.30 413.80 - - - - 252.90 385.60 - - - -
30 305.50 456.60 - - - - 277.30 423.90 - - - -
37 363.10 547.00 - - - - 334.40 518.90 - - - -
44 428.30 642.20 - - - - 394.10 612.60 - - - -
52 491.70 741.50 - - - - 462.80 713.10 - - - -
61 563.60 855.00 - - - - 535.00 827.80 - - - -

NOTE
:: The above prices are in Rs. per meter, subject to alteration without any prior notice.
:: The above prices are on ex factory basis, exclusive of discount.
:: Excise duty 16% extra
:: Sales Tax extra
:: Freight charges extra
