Fitment of bearing inner races and labyrinth seals, ICF bearing & ring etc

Model no. MNT 01, Yoke size : 20 x 20 x 50mm & Yoke size :40 x 40 x 500mm Volts : 230V, 50Hz ,15A.1 ph Model no. MNT 02 Yoke size: 80x80x500mm Power : 380V , 2 Phase 50 Hz , AC , 35 to 40 A

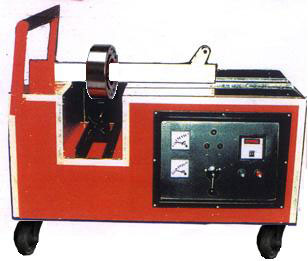

General Description:
Outer body is made of heavy gauge mild steel sheet angle and jacketed by Bakelite sheet and control
Panel is made of mild steel sheet.4 nos. of wheeled will be provided for easy tra nsportation on shop
Floor. Induction heater is horizontal type, but the bearings and others objects will be placed vertically
Support. Yoke movement area is made of stainless steel for easy work.

Range of working : 1. Yoke size: 20mm x 20mm x 500mm & 40mm x 40mm x 500mm. 1 no. Each
(Model no. MNT-01, 230 volts, 1 phase, 50 Hz, AC, Load: 15A)
2. Yoke size: 80mm x 80mm x 500mm 1 no.
(Model no: MNT-02, 380 volts, 2 phase, 50 Hz, AC, Load : 35A)

Temperature : Controlled by digital indicator cum-temperature controller for model no. MNT-02 in conjunction with CR/AL thermocouple wire with compensating cable.MNT-01 controlled by digital timer and hand held digital thermometer, both is calibrated by ERTL certified. Temperature is 120'C, and there will provision to heat the object up to 150'C max, during heating time bearings and the other objects will heated up gradually , but the others components will remain cool in any season.

Advantage : Two (2) transformer coil will be provided one for RH and other for LH ,Model no. MNT-01 is low range of working , pinions and gears will not heated up, and the Model no. MNT-02 , heavy duty . Portable and light weight and maintenance free Unit ,and low vibration type, electromagnetic system.temperature will reach in the The objects within 5 to 7 minutes, and pinions and gears will be heated up within The 15 to 20 minuets. Demagnetizing system will be provided after completion of Every heating cycle.

Control Panel : 1.Digital temperature controller, 2. Am meter , 3. Volt meter, 4. Main lamps, 5. Load lamps, 6. Rotary switch 7. Main toggle switch , 8. Hooter lamp(Parking),9. Push button switch (Micro) for ON 10. Push button switch for emergency OFF 11.HRC fuse plug , 12. Input cable .
