INDUCTION HEATER FOR BEARING REMOVEBAL

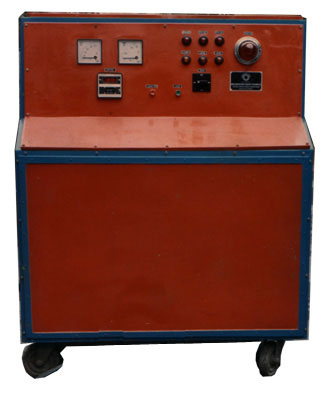

DESCRIPTION : The outer body is made of heavy gauge mild steel sheet angle iron and jacketed by Heavy duty mild steel sheets and lowers back and front side will be fitted by Bakelite sheet.This Equipment will be workable for quirk dismounting of roller bearing inner and from axle Journal. It is mounted on 4 nos. wheeled trolley for easy transportation on shop floor.

ELECTRICAL : Operating voltage : Input :400/440 volts, 3 phase , 4 wires , 50 Hz , AC ,
Unbalnce load . Out put : 200volts, 80 to 90 KW. 50Hz.

SIZES OF BEARINGS :Inner races :180mm(ID) x 192mm(OD) & 145mm(ID) x 157mm(OD)

ADVANTAGE: This machine is very simple to operate and only two lay man can be handle it And dismount all the (4 nos) inner races at a time including labyrinth seals , not required any Water cooling system in the induction coil and also not required any air circulation system in the control panel it's are auto air cooled system.

INDUCTION HEATING COIL :inner races will be heated rapid heated by induction heating Coil , this coil is light in weight and insulated by epoxy resin .One (1) no.induction heating coil Will supply in the machine and spares 2 (two) nos. need for mounting of inner races and another For consignee's requirement.

CONTROL PANEL :Controlled by digital timer 99 seconds,and temperature will reach within 40 seconds to 50 seconds , maximum temperature 200'C if require , volt meter , am meter , neon
lamp , hooter lamp , hooter , main switch (6A) for circuit .

PROTECTION : 1. HRC fuse system 2. Over and under voltage protection 3. Phase fail relay 4. Auto demagnetising contactor. 5. Parking lamp and hooter will be indicate the completion of
every heating cycle, as well as auto demegnetisation .

PRICE : Rs. 5,25,000/ each. Spares are extra on cost.

CREDENTIALS: NBQ/NFR, JMP/ER, AJJ/SR, KGP/SER, LLH/ER, RYPS/SCR SRC/SER, SER/VSKP, TATA/SER. NTPC, SAIL.
