| Products
>> |
| Click
for Material Source .. |

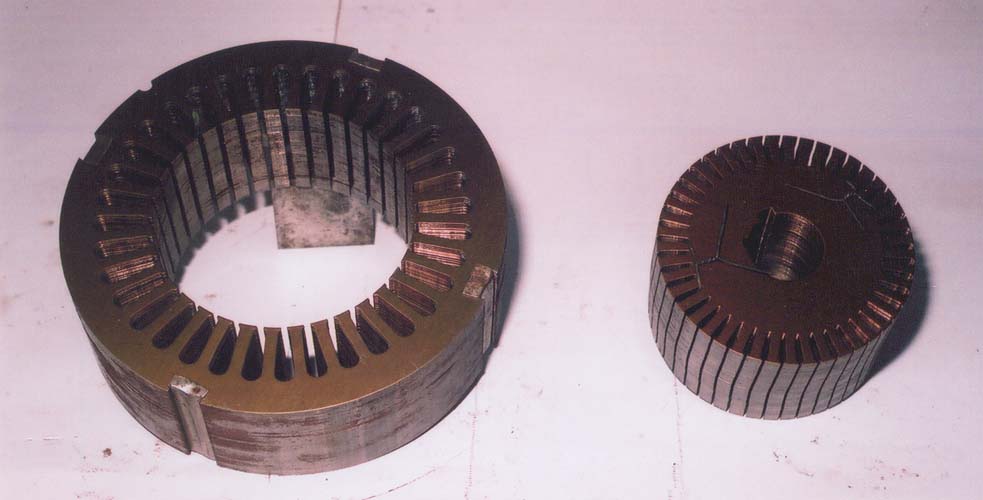

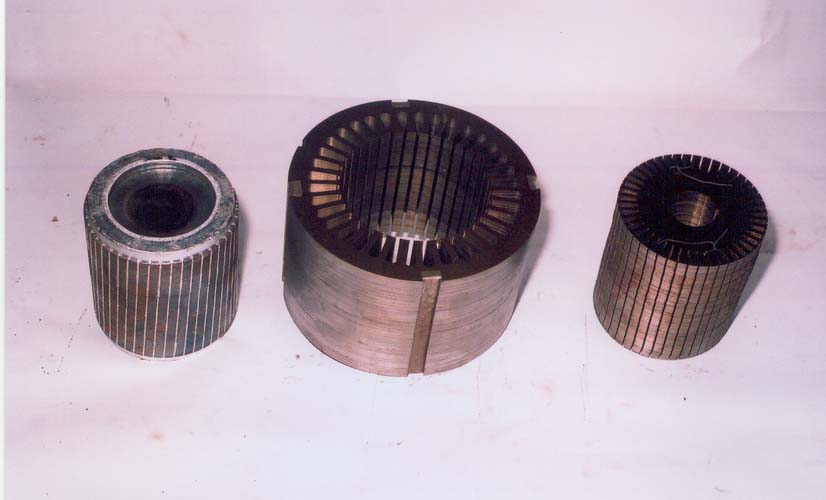

Stamping
for A.C. Motor
Spec
. : 180 X 110 X 35 - 36 / 45 Slot with Rotor Die Casting |

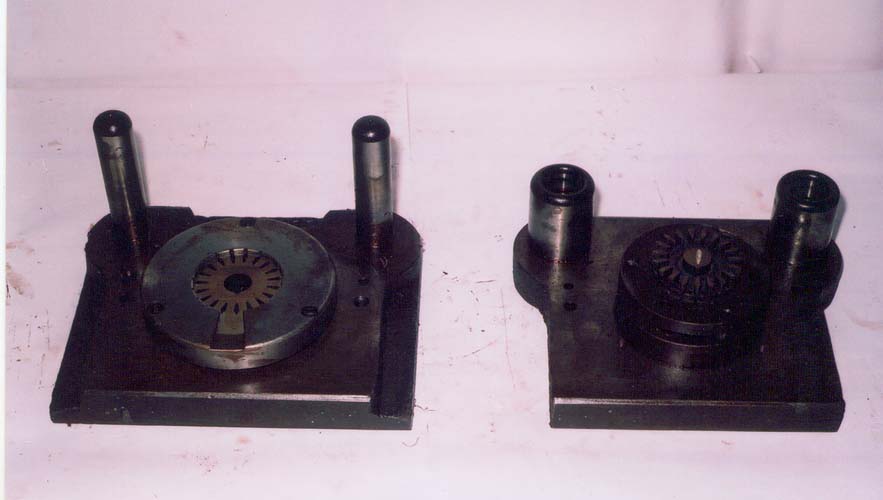

Gang Tool for A. C. Motor Stamping |

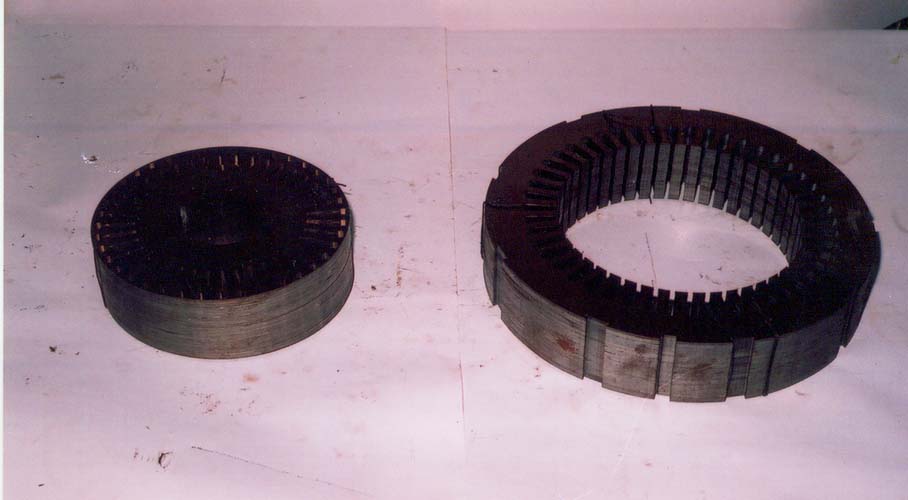

Stamping
for A.C. Motor
Spec.
: 260.35 X 165.1 X 55 - 48 / 40 Slot |

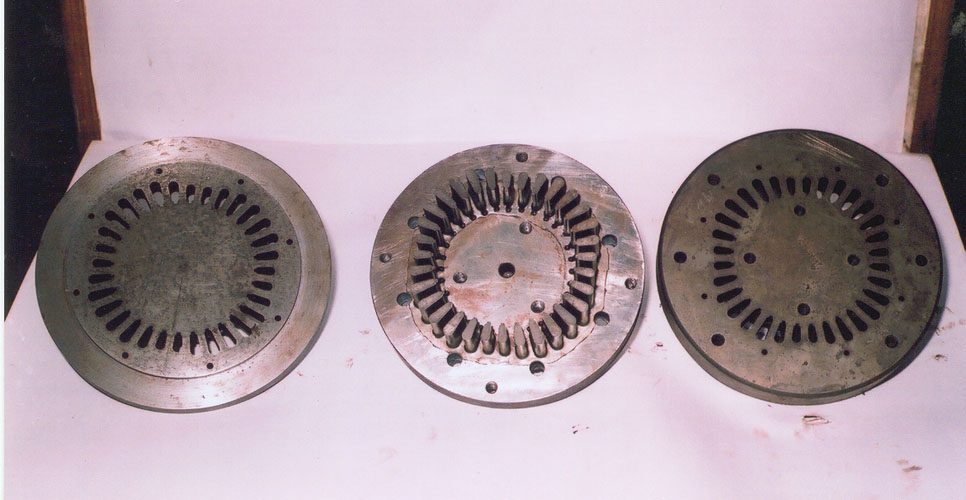

Gang Die |

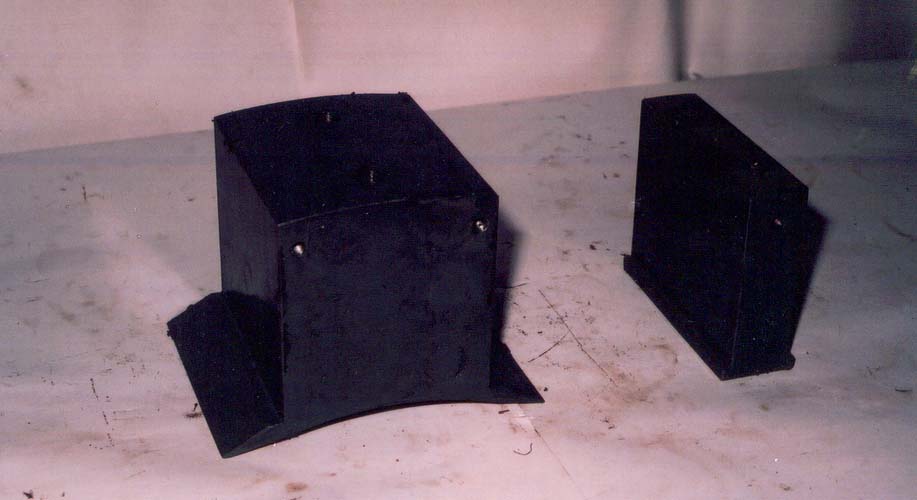

Field Core Lamination for D.C. Motor Stamping
|

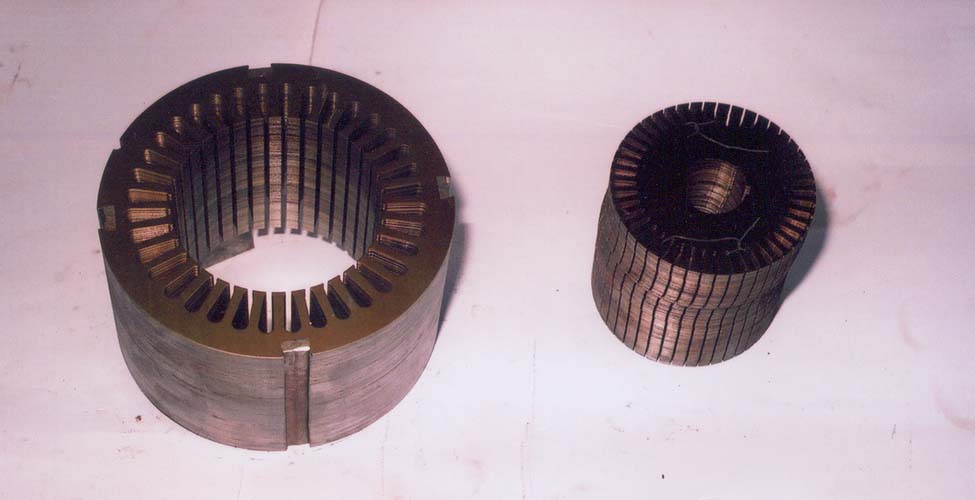

Stamping
for A.C. Motor
Spec.:
160 X 95 X 30 - 36 / 45 Slot |

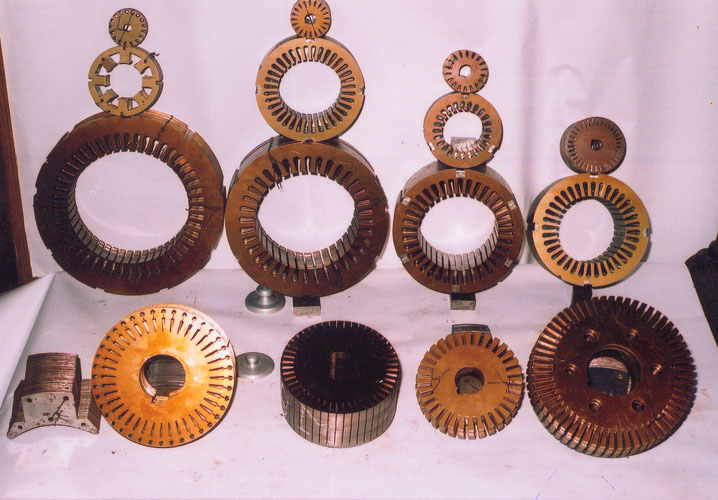

Various Type of Stamping A. C. & D. C. both
|

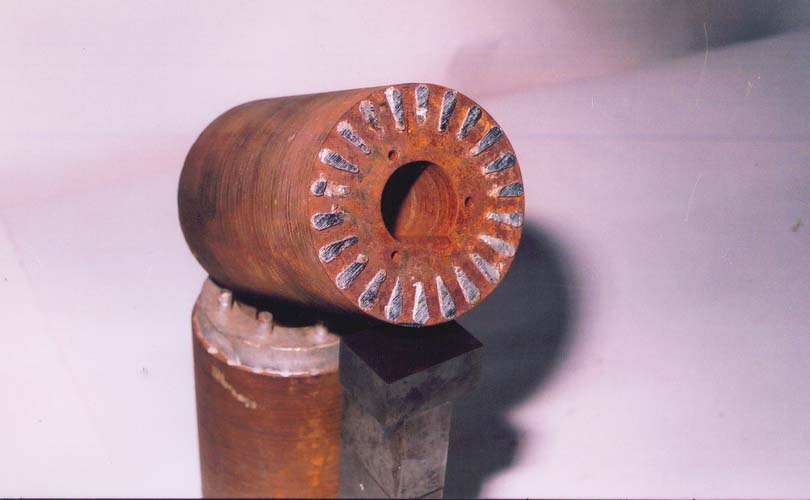

View of Die Casting |
Stamping
for A.C. Motor
Spec.
: 145 X 85 X 25 - 36 / 45 slot |

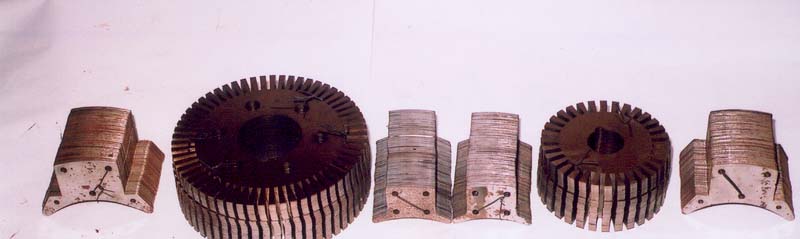

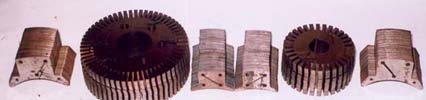

Armature & Field Core for D. C. Motor |
|
| |
| Material
Source - We bring our sheets from Rourkela Steel Plant |
| Material
Specification |
-
Material
– CRNO (Cold Rolled Non-Oriented Steel)
-
Grade
– M47 (Used for all Industrial & Domestic motors,
Alternators, Exhaust fans)
-
Coating
– C-3 (Used for all High efficiency rotating electrical
machinery)
-
Thickness
– 0.50mm
-
Coreloss
at 50Hz (W/Kg.) – 7.25 (1.5T), 3.60 (1.0T)
-
IR
Value (Amp.) – 0.39
-
Stacking
factor - 96.40%
-
Hardness
(HRB) – 67
|
 |
| |
| Some of
our regular products are listed below :- |
| (FOR D.C. MOTORS, ALTERNATORS
ETC.) |
(A.C. MOTORS, EXHAUST
FAN) |
| 406 X 195 |
34 |
355.6 X 228.6 X 57.15 |
48/56 |
| 190.5 X 63.5 |
59 |
260.35 X 165.1 X 55 |
48/40 |
| 163.5 X 50 |
25 |
227 X 149.7 |
72 |
| 152.4 X 44.5 |
37 |
222.25 X 139.7 X 41.3 |
36/48 |
| 139.7 X 41.275 |
24 |
180 X 110 X 35 |
36/45 |
| 139.7 X 41.275 |
32 |
140 X 80 X 25 |
36/28 |
| 127 X 34.975 |
32 |
138.1 X 88.9 X 19.05 |
24/30 |
| 116 X 29.5 |
24 |
133.35 X 79.375 X 15.875 |
24/34 |
| 111.5 X 29.5 |
25 |
127 X 72 X 25 |
24/18 |
| 81 X 19.05 |
16 |
120.65 X 69.85 X 25 |
24/22 |
| 76.2 X 19.05 |
18 |
120.65 X 69.85 X 25 |
36/39 |
| 93 x 25 |
19 |
116 X 57.45 X 22.22 |
18/22 |
| 228.6 x 57.15 |
37 |
108 X 59 X 14.28 |
24/32 |
|
| |
| RAILWAY
CARRIAGE FAN STAMPING ALSO AVAILABLE |
