| SPECIFICATION : |
TYPE |
DATA |
|
Operating Principal |
Magnetic Coupling with a diaphragm sensor. |
| Working Pressure |
3 bar for ranges upto 125 mm H2O & 35 bar for further ranges. |
| Accuracy |
± 2% of FSD (Ascending) |
| Dial Size |
3.5” (80 mm), 4” (100 mm), 4.5” (115 mm) & 6” (150 mm) |
| Temperature |
80˚ C Max. for the media. |
| Protection |
IP 65 for gauge. |
| Connection |
1/8” BSP or NPT Female. |
| Switching |
SPST or SPDT, One or Two. Factory Set. |
| |
|
|
| |
|
top ... |

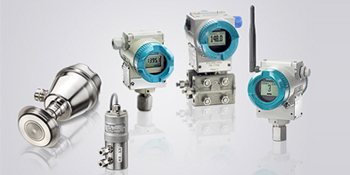

| Pressure Transmitter - |
FEATURES :
- Direct digital capacitance sensing
- True non- interactive zero and span.
- Local zero and span adjustment.
- Remote calibration and parameterization.
- Alphanumerical LCD indication.
- Small and light weight.
- Explosion proof and weather proof housing approved (IP 67)
- Intrinsically safe certification.
- Signal simulation for loop tests.
APPLICATION : For continuous measurement of Pressure, Level and Flow. |
| |
|
|
| SPECIFICATION : |
TYPE |
DATA |
|
Accuracy |
0.04%. |
| Rangeability |
120 : 1 |
| Process Fluid |
Liquid, Gas or Vapour. |
| Output |
Two Wire, 4-20 mA. |
| Power Supply |
12 to 45 V DC. |
| Indicator |
4½ digit numerical and 5 character alphanumerical
LCD indicator. |
| Diaphragm Material |
316L SST, hastelloy C 276 |
| Fill Fluid |
Silicone. |
| |
|
|
| |
|
top ... |
| Pressure Switch - |
FEATURES :
- High Repeatability.
- Temperproof Setpoint.
- Better Sensitivitiy.
- Precision Adjustments.
- Rugged Design and Construction.
- Better Stability.
|
| |
|
|
| SPECIFICATION : |
TYPE |
DATA |
|
Switiching Element |
SPDT Snap action switch rated at 5A, 250 V AC, 0.2 A, 250 V DC Resistive. |
| Range Covered |
0.067 bar to 25 bar Pressure. |
| Enclosure |
Cast Aluminium / Pressure Diecast Aluminium / Machined Aluminium / Pressed Steel Enclosure IP 54 / IP 65 / Flame Proof . |
| Sensing Element |
Diaphragm. |
| Wetted Parts |
Aluminium / Brass / SS 316 / Other on request. |
| Temperature of Working Medium. |
80˚ C Max. |
| |
|
|
| |
|
top ... |
| Hydraulic Pressure Switch - |
FEATURES :
- High Repeatability.
- Temperproof Setpoint.
- Better Sensitivitiy.
- Precision Adjustments.
- Rugged Design and Construction.
- Better Stability.
|
| |
|
|
| SPECIFICATION : |
TYPE |
DATA |
|
Switiching Element |
SPDT Snap action switch rated at 5A, 250 V AC, 0.2 A, 250 V DC Resistive. |
| Range Covered |
3 bar to 400 bar Pressure. |
| Enclosure |
Pressure Diecast Aluminium / Machined Aluminium.IP 65 / Flame Proof . |
| Sensing Element |
Piston EN8 SS. |
| Wetted Parts |
Aluminium / Brass / SS 316 / Other on request. |
| Temperature of Working Medium |
80˚ C Max. |
| |
|
|
| |
|
top ... |
| Differential Pressure Switch - |
FEATURES :
- High Repeatability.
- Temperproof Setpoint.
- Better Sensitivitiy.
- Precision Adjustments.
- Rugged Design and Construction.
- Better Stability.
|
| |
|
|
| SPECIFICATION : |
TYPE |
DATA |
|
Switiching Element |
SPDT Snap action switch rated at 5A, 250 V AC, 0.2 A, 250 V DC Resistive. |
| Range Covered |
15 MM Wg to 25 bar Pressure. |
| Enclosure |
Pressure Diecast Aluminium. IP 54 / IP 65 / Flame Proof . |
| Sensing Element |
Diaphragm. |
| Wetted Parts |
Aluminium / Brass / SS 316 / Other on request. |
| Temperature of Working Medium. |
80˚ C Max. |
| |
|
|
| |
|
top ... |
| Flame Proof Pressure Switch - |
FEATURES :
- High Repeatability.
- Temperproof Setpoint.
- Better Sensitivitiy.
- Precision Adjustments.
- Rugged Design and Construction.
- Better Stability.
|
| |
|
|
| SPECIFICATION : |
TYPE |
DATA |
|
Switiching Element |
SPDT Snap action switch A1 : General purpose rated at 15A, 250 V AC, 0.2 A, 250 V DC Resistive. |
| Range Covered |
760 mm Hg to 350 bar Pressure. |
| Enclosure |
IP 66. |
| Sensing Element |
Diaphragm. |
| Wetted Parts |
Aluminium / SS 316 / Other on request. |
| Temperature of Working Medium. |
80˚ C Max. |
| |
|
|
| |
|
